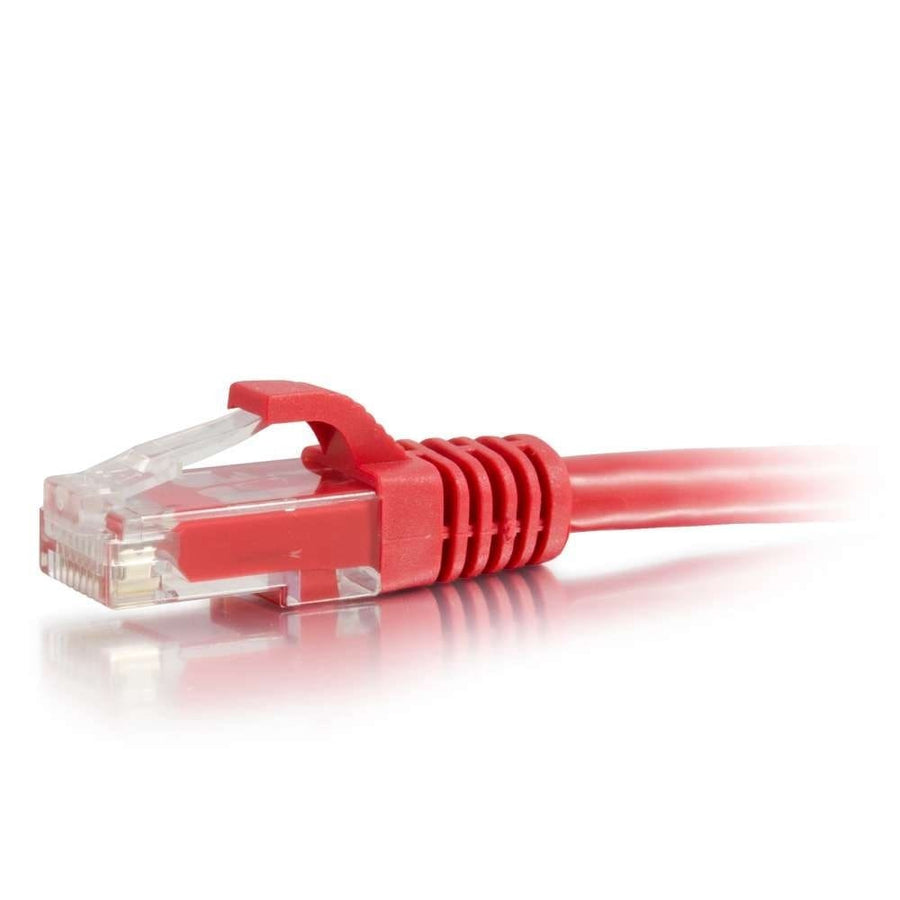

150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Red
150ft Red Cat6 Snagless Unshielded UTP Ethernet Patch Cable with stranded copper conductors and RJ-45 male connectors
The C2G CG27189 is a 150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This Cat6 cable meets all TIA/EIA standards, providing performance for fast Ethernet and Gigabit computer networks. It is constructed from high-quality copper with a stranded conductor design to minimize Near-End Crosstalk (NEXT) levels. To maintain structural integrity, each individual pair is bonded together, which helps maintain twist-spacing throughout the 45.7 m line right up to the termination point. This construction significantly reduces both impedance and structural return loss (SRL). The cable features a red PVC jacket and includes molded snagless boots to protect the RJ-45 male connectors from being damaged during installation and to provide extra strain relief. With a 0.24 in (6.2 mm) diameter and 24 AWG wire gauge, this cable is built for reliable network connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.96 lbs (1.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271895 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum length for this Cat6 patch cable?
This specific CG27189 model is 150 ft (45.7 m) long. C2G offers other lengths in this series up to 150ft.
What type of connectors does the CG27189 use?
This cable features two RJ-45 male connectors with a snagless, booted design to prevent clip damage.
Is this cable suitable for high-bandwidth applications?
Yes, it is a Cat6 cable designed for fast Ethernet and Gigabit networks involving intensive voice, data, or video distribution.
What is the difference between this cable and a standard patch cable?
The snagless boot provides extra strain relief and protects the clips, while the bonded pair construction helps maintain twist-spacing to reduce impedance.
What is the warranty for this C2G cable?
This product comes with a Lifetime warranty.
