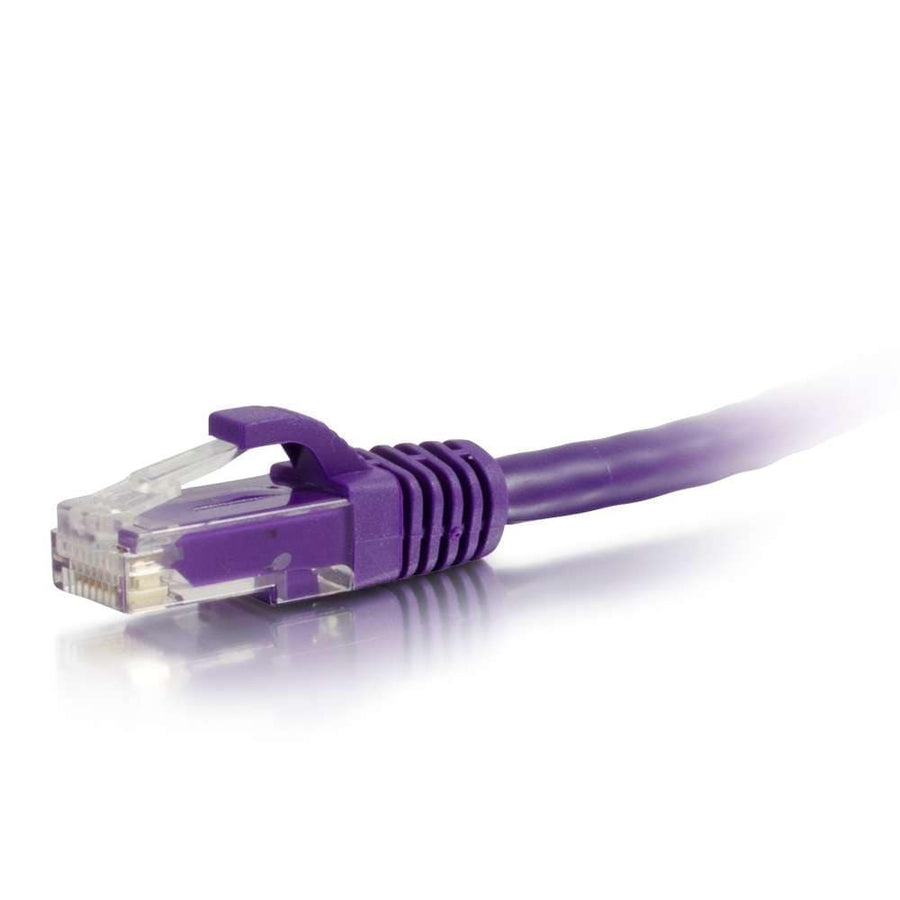

150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
150ft Cat6 snagless patch cable in purple, featuring unshielded twisted pair construction and stranded copper conductors for high-bandwidth applications
The C2G CG27809 is a 150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards and is engineered to drastically reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing through to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. The cable features 24 AWG stranded copper conductors and uses a T568B wiring scheme. To protect against damage during installation, the RJ-45 male connectors are equipped with molded, snagless PVC boots that provide extra strain relief and prevent the clips from catching on other cables. This purple-colored cable is part of a series available in 10 different colors to facilitate easy color-coding within complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 4.05 lbs (1.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278092 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, this C2G CG27809 cable is designed for Gigabit computer networks and bandwidth-intensive applications, meeting all Cat6 TIA/EIA performance standards.
What is the wiring scheme for the CG27809 cable?
This patch cable uses the T568B wiring scheme and features standard RJ-45 male connectors on both ends.
What makes the snagless boot design beneficial for installers?
The molded, snagless PVC boot protects the connector clips from being caught or snapped off while plugging or unplugging the cable in dense racks.
Is this cable suitable for high-interference environments?
This is an unshielded (UTP) cable. While the bonded pair construction helps minimize Near-End Crosstalk (NEXT), it does not feature external shielding.
What is the conductor material used in this patch cable?
The CG27809 uses 24 AWG stranded copper conductors to help maintain impedance and reduce structural return loss.
