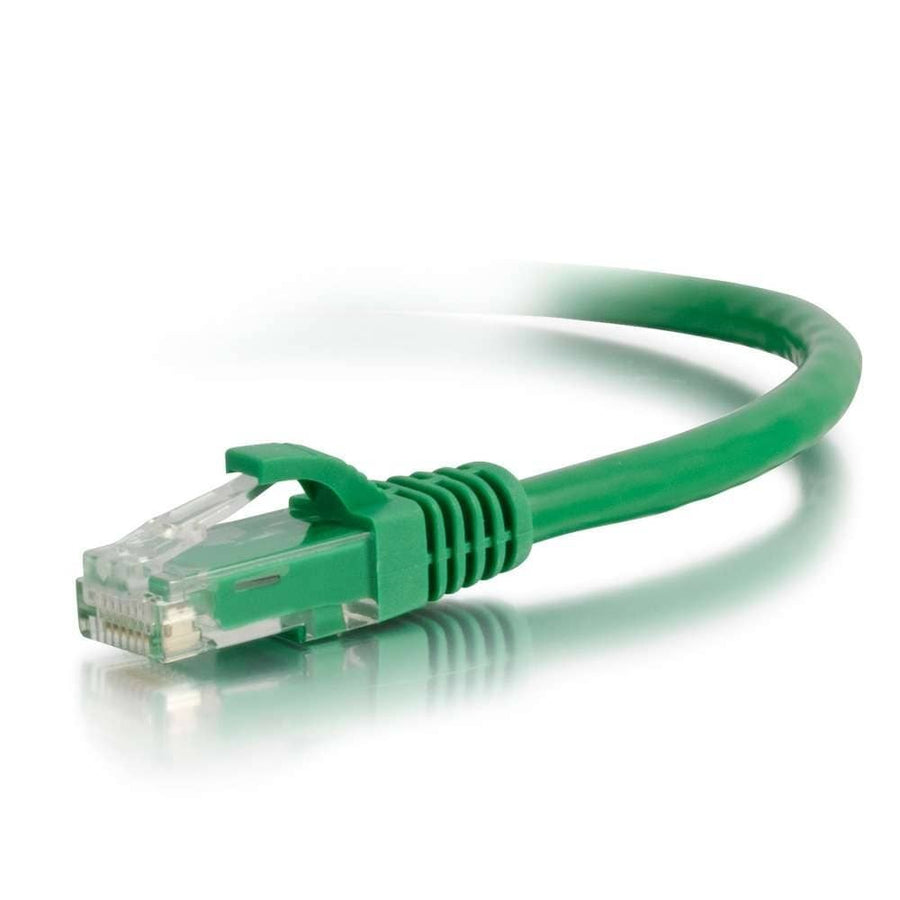

150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Green
150ft (45.7m) Cat6 Unshielded UTP patch cable with green snagless boots for high-bandwidth networking
The C2G CG27179 is a 150ft (45.7m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This cable meets all Cat6 TIA/EIA standards, utilizing a stranded copper conductor to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the entire 150ft line, which significantly reduces impedance and structural return loss (SRL). This specific green cable features molded, snagless boots that protect the RJ-45 clips from damage during installation and provide additional strain relief. The 0.24 in (6.2 mm) diameter construction is optimized for reliable performance in high-density environments. This Cat6 cable is built with a PVC jacket and utilizes the T568B wiring scheme, ensuring standard compatibility for modern networking hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.98 lbs (1.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271796 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum length for this Cat6 cable?
This specific SKU is a 150 ft (45.7 m) cable, though the series is available in various lengths up to 150ft.
Does this cable require special installation tools?
This is a pre-terminated patch cable with molded snagless boots, so no specialized termination tools are required for the connectors.
What is the wiring standard used for the CG27179?
The CG27179 follows the T568B wiring scheme for standard Ethernet connectivity.
Is this cable suitable for high-bandwidth video distribution?
Yes, this Cat6 cable is designed for bandwidth-intensive voice, data, or video distribution applications that meet TIA/EIA standards.
What is the difference between this and other colors in the series?
The only difference for this specific SKU is the green color, which is used for color-coding your network installation.
