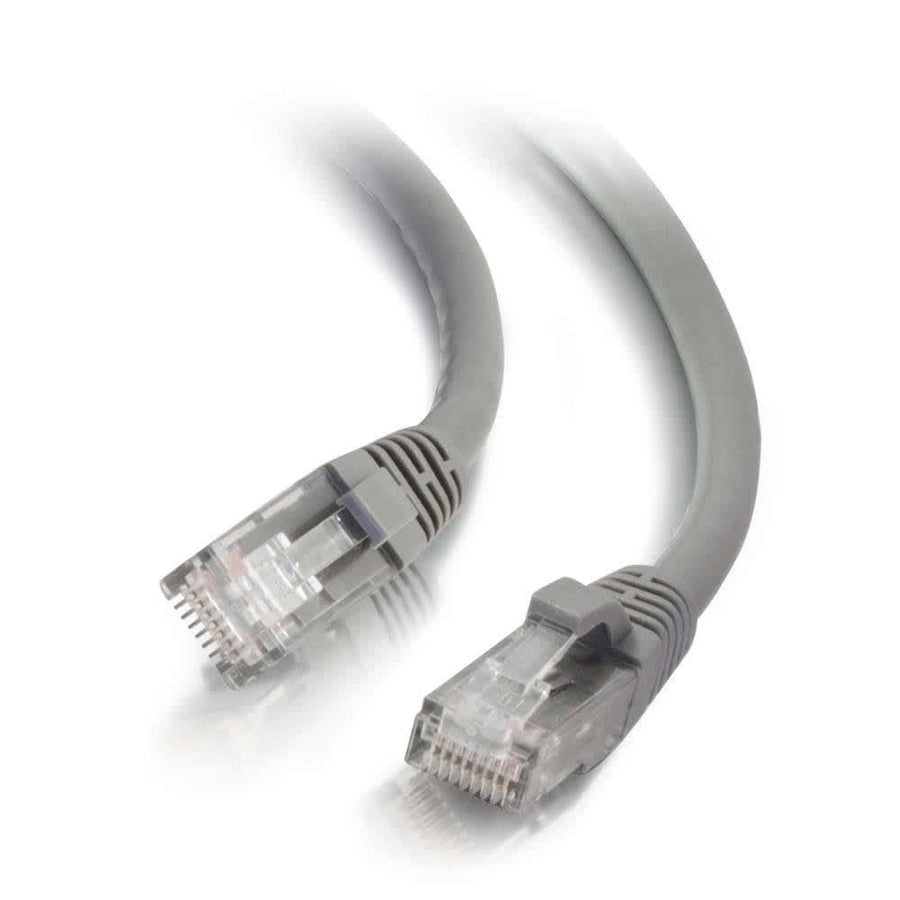

150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
150ft Cat6 snagless UTP patch cable in gray, featuring stranded copper conductors and snagless boots for high-bandwidth networking applications
The CG27139 is a 150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable in Gray, engineered for high-bandwidth voice, data, or video distribution applications. Designed to meet all Cat6 TIA/EIA standards, this cable significantly reduces impedance and structural return loss (SRL). It features high-quality stranded copper conductors that help minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing through to the termination point. The molded snagless boots provide extra strain relief and protect the RJ-45 clips from damage during installation or frequent plugging and unplugging. This unshielded twisted pair (UTP) cable utilizes 24 AWG wire and follows the T568B wiring scheme. The gray PVC jacket is rated as standard/non-rated, and the connector hoods are made of PVC. This 150ft cable is part of a larger series that includes 10 different colors for easy network identification.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.84 lbs (1.7 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271390 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum length for this C2G Cat6 patch cable series?
This specific SKU is 150ft (45.7m), but the series is available in various lengths up to 150ft.
Will this CG27139 cable work with my Cat6 patch panel?
Yes, this cable is compatible with various hardware including the 48-Port Rack Mount Patch Panel (48845CC6) and the 24-Port Rack Mount Patch Panel (24845CC6).
What is the wiring standard for the CG27139?
The CG27139 uses the T568B wiring scheme for its RJ-45 terminations.
Is the CG27139 snagless design beneficial for high-density environments?
Yes, the snagless boot protects the connector clips from breaking and provides strain relief, making it easier to install in crowded racks.
Does this cable require specific certifications for my installation?
This cable is compliant with RoHS, REACH, and CE standards.
