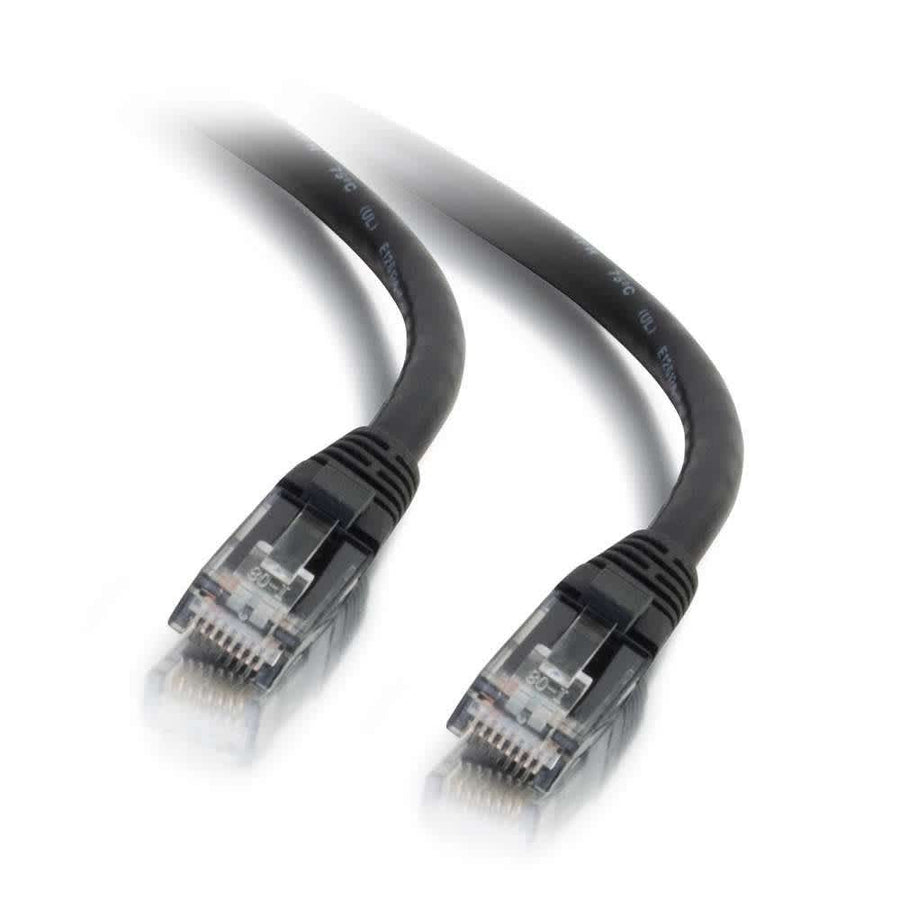

150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
150ft Cat6 Unshielded UTP Ethernet patch cable, Black, with snagless boots and RJ-45 male connectors
The C2G CG27159 is a 150ft (45.7 m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications, including voice, data, and video distribution. This cable is constructed from high-quality stranded copper with 24 AWG wire, engineered to meet all Cat6 TIA/EIA standards. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain precise twist-spacing throughout the 45.7 m length right up to the termination point. This construction helps reduce impedance and structural return loss (SRL). The cable features a 0.24 in (6.2 mm) diameter and is terminated with two RJ-45 male connectors. Each connector is protected by a PVC snagless boot, which prevents accidental damage to the clips during installation and provides additional strain relief. This black, Unshielded Twisted Pair (UTP) cable is suitable for fast Ethernet and Gigabit computer networks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.97 lbs (1.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271598 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this C2G CG27159 cable work with my Cat6 patch panel?
Yes, this Cat6 cable is compatible with various rack mount options, including the 48-Port Cat6 Rack Mount Patch Panel (48845CC6) and the 24-Port Cat6 Rack Mount Patch Panel (24845CC6).
What is the maximum length for this Cat6 series cable?
This specific SKU (CG27159) is 150 ft (45.7 m), but the series is available in various lengths up to 150 ft.
Does this cable require additional hardware for installation?
This is a patch cable; you may also require tools like a LANtest Pro or a SOHOTest-E cable tester for verification, though they are sold separately.
Is this cable suitable for high-speed Gigabit networks?
Yes, the CG27159 is a Cat6 rated cable designed for Gigabit computer networks and bandwidth-intensive video or data distribution.
What is the difference between this and the other C2G Cat6 cables?
This SKU is the 150ft Black variant; the series offers different colors like Blue, Gray, Green, and Red to assist with network color-coding.
