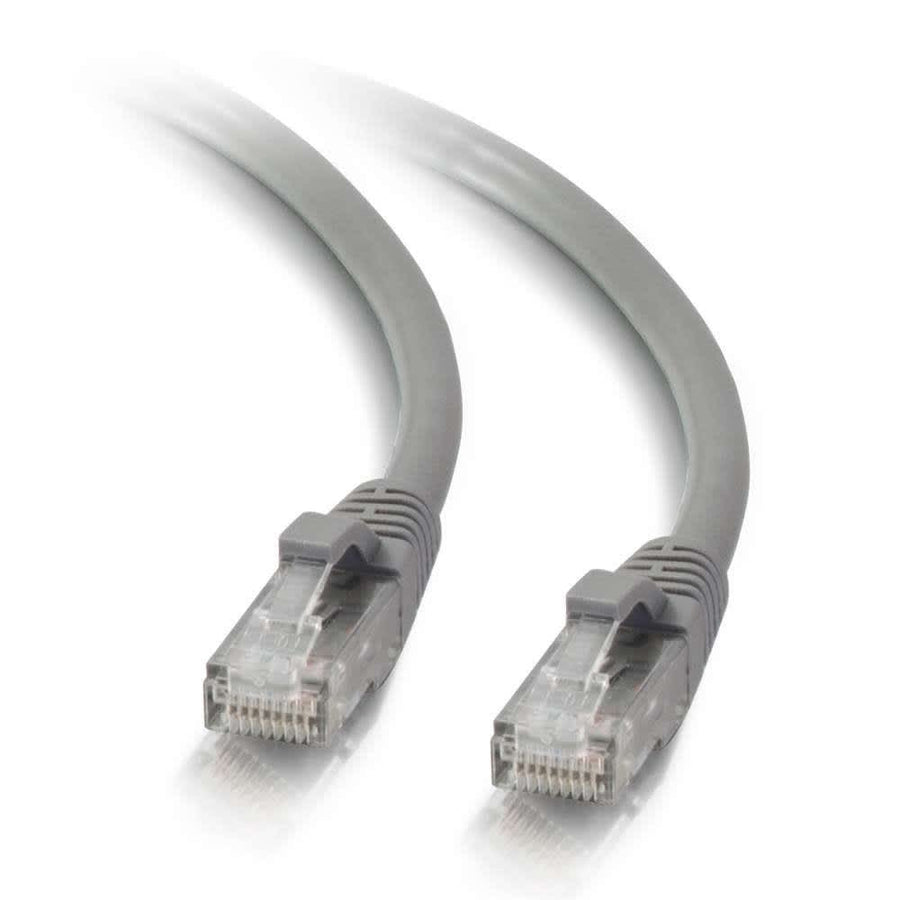

150ft (45.7m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
150ft Cat5e Unshielded UTP Ethernet patch cable with snagless boots and gray PVC jacket
The C2G CG19378 is a 150ft (45.7 m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. Built with high-quality stranded copper conductors, this cable is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the entire 150ft length, which helps reduce impedance and structural return loss (SRL). This cable features an unshielded (UTP) construction with a 0.21 in (5.3 mm) diameter and a standard PVC jacket. The molded snagless boots protect the RJ-45 clips from damage during installation and provide additional strain relief for the connection. This gray cable follows the T568B wiring scheme and is rated for a 350 mHz bandwidth. It is compliant with NDAA 889, RoHS, and REACH standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.28 lbs (1.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120193784 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum bandwidth of the C2G CG19378?
The C2G CG19378 is rated for a bandwidth of 350 mHz, making it suitable for bandwidth-intensive data and video applications.
Will the snagless boot on the CG19378 protect the connector?
Yes, the molded snagless boot is designed to protect the RJ-45 clips from being snapped off during plugging and unplugging while providing extra strain relief.
Is the CG19378 suitable for high-crosstalk environments?
The use of stranded copper and bonded pairs helps minimize Near-End Crosstalk (NEXT) and reduces structural return loss (SRL) throughout the 150 ft cable.
What is the wire gauge and termination standard for this cable?
This Cat5e patch cable uses 24 AWG wire and follows the T568B wiring scheme.
Does the CG19378 comply with NDAA 889?
Yes, this cable is listed as NDAA 889 compliant and also meets REACH and RoHS standards.
