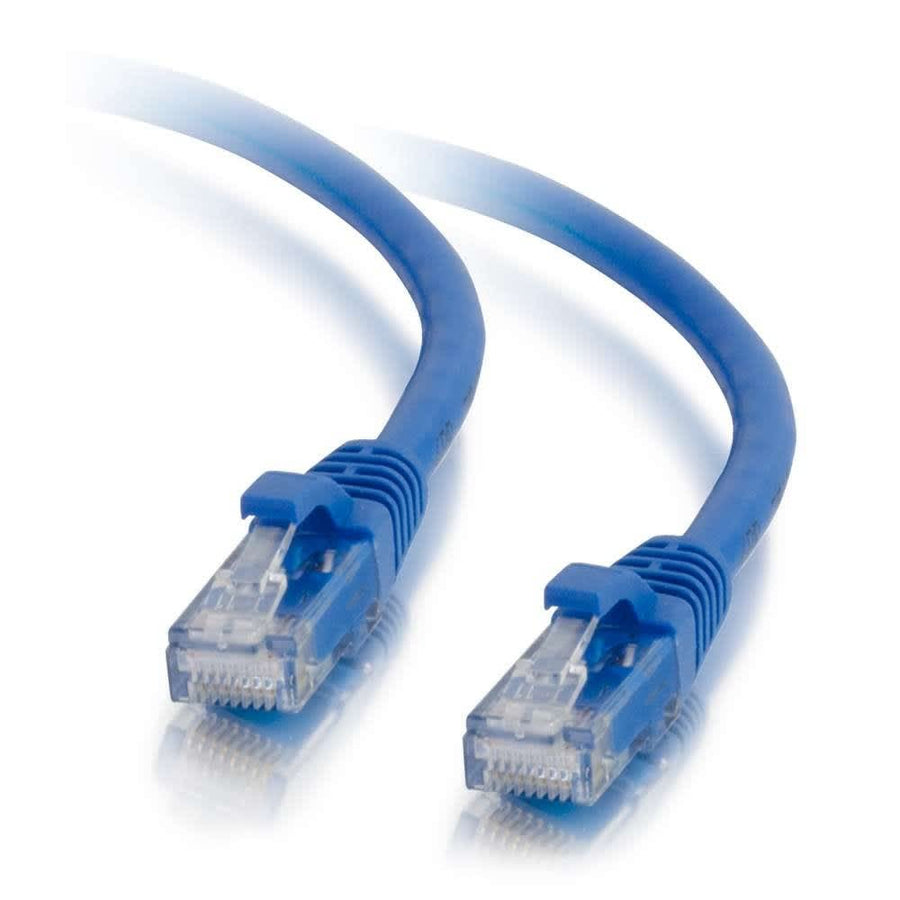

150ft (45.7m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
150ft blue Cat5e snagless unshielded UTP Ethernet patch cable for bandwidth-intensive network applications
The CG23870 is a 150ft (45.7 m) Cat5e snagless unshielded UTP Ethernet network patch cable in blue. Designed for bandwidth-intensive voice, data, or video distribution applications, this cable meets all Cat5e TIA/EIA standards. It features stranded copper conductors that minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing through the termination point, which drastically reduces impedance and structural return loss (SRL). This cable uses a T568B wiring scheme and features RJ-45 male connectors on both ends. The snagless boot design protects the clips from damage during installation and provides extra strain relief. With a 0.21 in (5.3 mm) cable diameter and a 350 mHz bandwidth, this cable is built for reliable high-speed networking. This blue cable is part of a series available in various colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.15 lbs (1.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120238706 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
Will this CG23870 cable work for high-bandwidth video distribution?
Yes, the CG23870 is designed for bandwidth-intensive voice, data, or video distribution applications and meets all Cat5e TIA/EIA standards.
What is the wiring scheme for the CG23870 patch cable?
The CG23870 uses the T568B wiring scheme with RJ-45 male connectors on both ends.
Does the CG23870 feature snagless boots to protect the clips?
Yes, the molded snagless boot is designed to protect the clips during plugging and unplugging while providing extra strain relief.
What is the cable diameter for the CG23870?
The CG23870 has a cable diameter of 0.21 in (5.3 mm).
Is the CG23870 compliant with environmental standards?
The CG23870 is listed with CE, REACH, and RoHS certifications.
