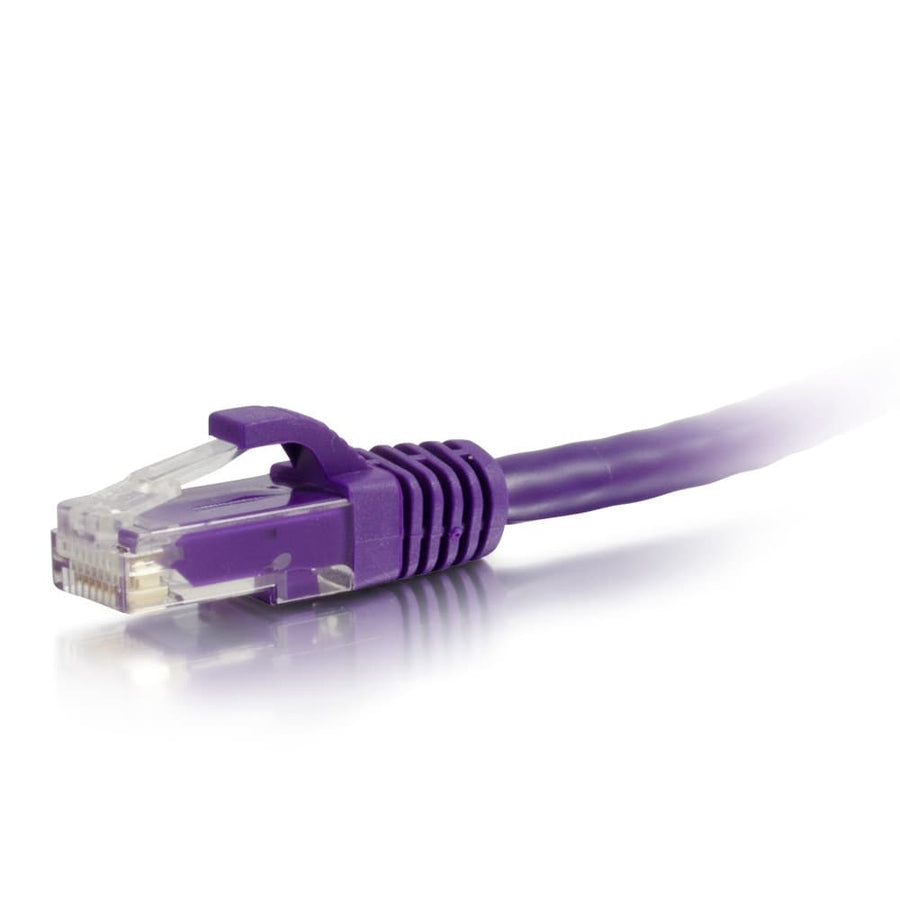

14ft (4.25m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
14 ft Cat6a snagless UTP patch cable, purple, 26AWG stranded copper, tested to ANSI/TIA 568 C.2 standards
The C2G CG50828 is a 14 ft (4.3 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in purple, specifically engineered for 10GBase-T ports and high-performance networking equipment. This cable supports 10 Gigabit data transmission over a 4 pair copper configuration, facilitating reliable connections for up to 100 meters in various network environments. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring it meets the rigorous performance standards needed for modern high-speed data transfer. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. Designed to improve alien crosstalk performance, this cable is an excellent choice for high-density switch applications where space is at a premium. The snagless hood protects the connection, and the purple color allows for easy identification within complex rack installations. Each cable includes an individual length label to assist during deployment and management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508281 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the CG50828 work with 10 Gigabit equipment?
Yes, this Cat6a cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over a 4 pair copper cable.
What is the maximum length for Cat6a performance with this cable?
This patch cable enables 10 Gigabit data transmission for connections reaching up to 100 meters.
Is this cable suitable for high-density patch panels?
Yes, the snagless hood design is specifically intended to assist with cable management in high-density switch applications.
What is the wiring scheme for the CG50828?
This cable follows the 568B wiring scheme and features 26AWG (7/0.16) bare copper stranded conductors.
Can I use this with Cat6a keystone inserts?
Yes, it is compatible with various Cat6a components such as the WP346AIV, WP346AOR, or the WP246A 24-Port Rack Mount Patch Panel.
