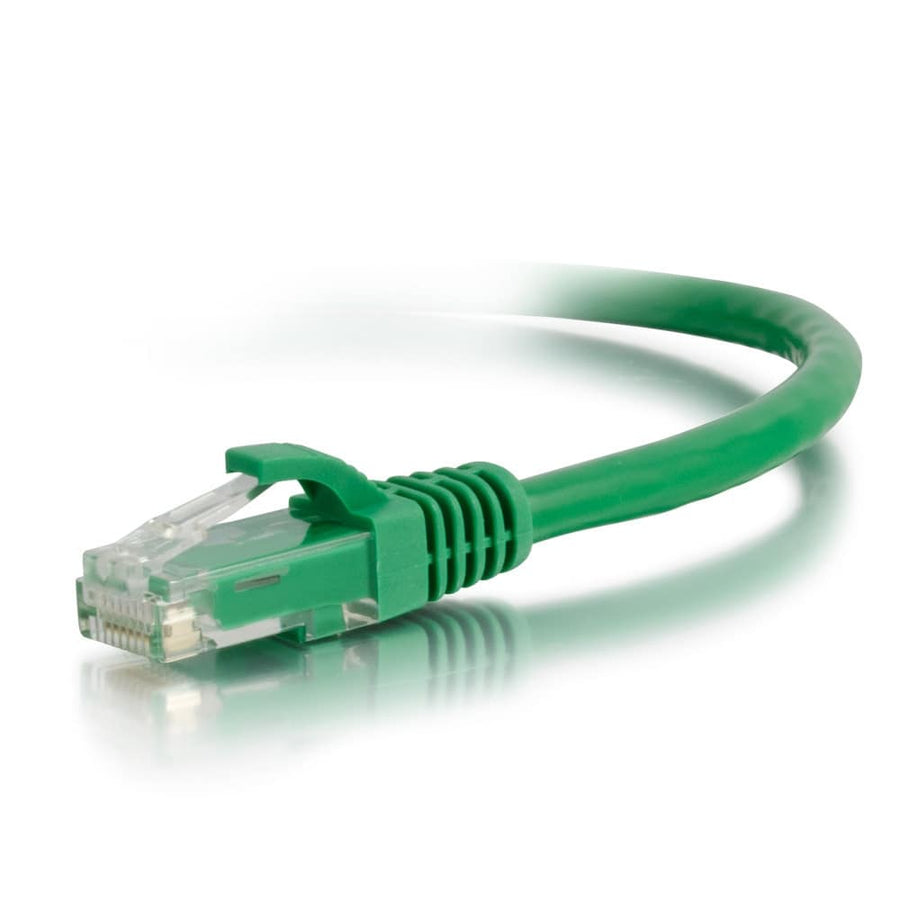

14ft (4.25m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
14 ft (4.3 m) Green Cat6a Snagless UTP Ethernet patch cable for 10GBase-T high-density network applications
The C2G CG50790 is a 14 ft (4.3 m) Snagless Unshielded UTP Cat6a patch cable designed to facilitate 10 Gigabit data transmission over a 4 pair copper cable. This cable supports connections up to 100 meters, making it an ideal choice for 10GBase-T ports and equipment including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable features a PVC jacket and connector hood. The snagless, booted RJ-45 male connectors are specifically designed to protect the plug during installation, which is particularly beneficial in high-density switch environments. This Cat6a patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements and is engineered to provide improved alien crosstalk performance. The green jacket allows for easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507901 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the C2G CG50790 support 10 Gigabit speeds?
Yes, this Cat6a cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4 pair copper cabling for distances up to 100 meters.
Is this cable suitable for high-density switches?
Yes, the CG50790 features a snagless, booted RJ-45 connector design which helps protect the connection in high-density switch environments.
What is the wiring scheme for this patch cable?
This C2G Cat6a patch cable uses the 568B wiring scheme.
What testing certifications does this cable meet?
The cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements and is compliant with CE, REACH, and RoHS standards.
Can I use this for color-coding my network rack?
Yes, this specific SKU features a green jacket and is part of a series available in multiple colors for easy identification and color-coding.
