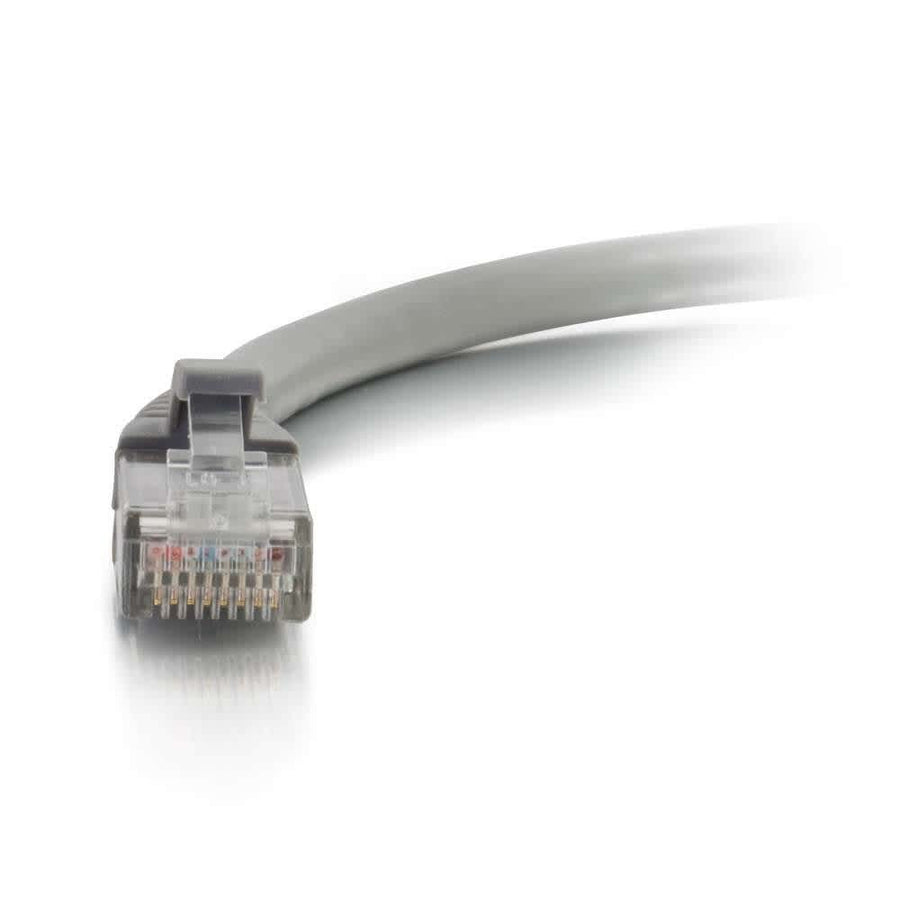

14ft (4.25m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
14ft Cat6a Snagless UTP Ethernet Patch Cable, 26AWG stranded copper, Gray finish
The CG00666 is a 14 ft (4.3 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in Gray, engineered for high-performance 10GBase-T applications. This cable supports 10 Gigabit data transmission over a 4-pair copper configuration, making it suitable for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance. The construction features 26AWG bare copper stranded conductors with HDPE (High-density Polyethylene) insulation and a PVC jacket. To accommodate high-density switch environments, the RJ-45 male connectors feature a snagless, booted PVC hood to prevent accidental disconnection during installation or maintenance. This cable is designed with a 568B wiring scheme and is rated for temperatures up to 75°C. Each unit includes an individual length label to assist with identification in complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006664 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
Is the CG00666 suitable for 10 Gigabit Ethernet?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission via a 4-pair copper cable.
What is the wiring scheme for the CG00666 cable?
This Cat6a patch cable utilizes a 568B wiring scheme and features stranded 26AWG bare copper conductors.
Does this cable include a snagless design?
Yes, the CG00666 features a snagless, booted RJ-45 male connector design, which is ideal for managing cables in high-density switch applications.
What certifications does this cable hold?
This cable is ANSI/TIA 568 C.2 Cat6a channel tested and carries CE, RoHS, and REACH certifications.
What accessories are compatible with this Cat6a cable?
This cable can be used with various accessories including the WP246A 24-Port Rack Mount Patch Panel and the CG03414 Six Port Keystone Single Gang Wall Plate.
