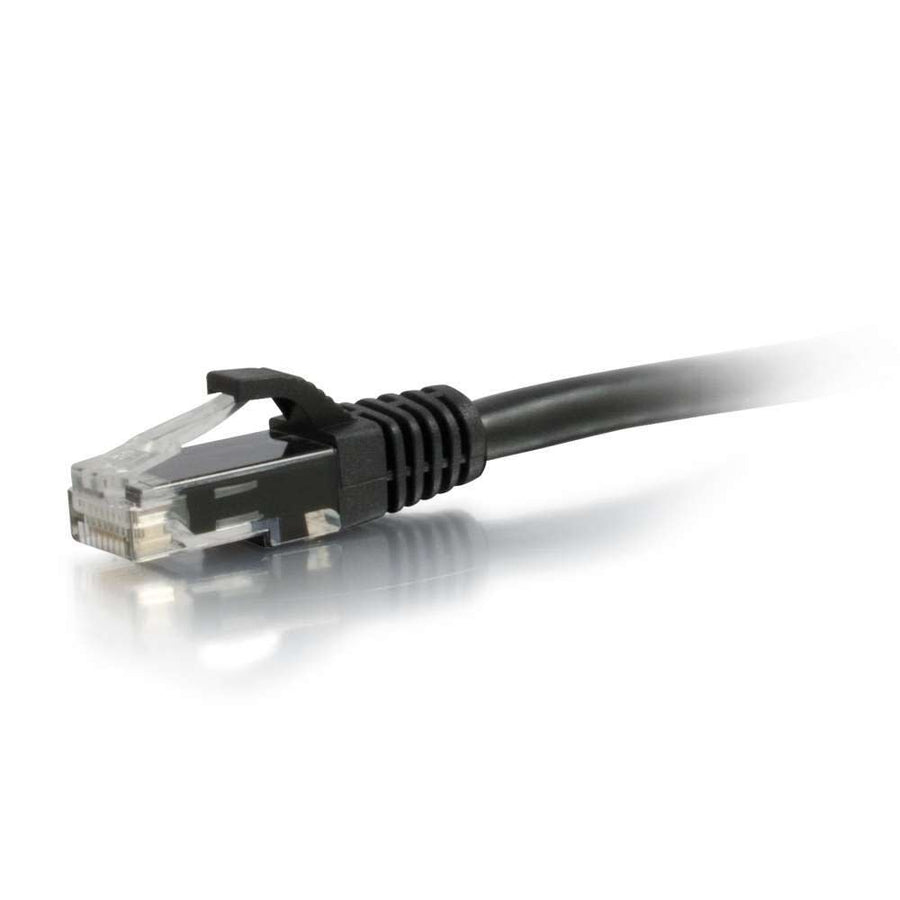

14ft (4.25m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
14ft Cat6a snagless unshielded UTP ethernet patch cable, black, tested for ANSI/TIA 568 C.2 performance
The C2G CG00734 is a 14ft (4.3 m) Cat6a snagless unshielded UTP ethernet patch cable designed for high-performance 10GBase-T applications. This cable supports 10 Gigabit data transmission over 4-pair copper cabling, facilitating connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, offering improved alien crosstalk performance for demanding network environments. The construction features 26AWG bare copper stranded conductors with HDPE (High-density Polyethylene) insulation and a PVC jacket. Both ends are terminated with RJ-45 male connectors featuring snagless, booted PVC hoods to protect the connection in high-density switch environments. This black patch cable utilizes a 568B wiring scheme and is rated for temperatures up to 75°C. For ease of deployment and management, each individual cable includes a length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007340 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the C2G CG00734 work with my 10Gb switches?
Yes, this Cat6a patch cable is designed for 10GBase-T ports, including use with network adapters, hubs, switches, routers, and patch panels.
Is this cable suitable for high-density patch panels?
The CG00734 features a snagless, booted connector design, which makes it ideal for navigating and servicing high-density switch applications.
What is the wiring standard for this patch cable?
This C2G patch cable uses the 568B wiring scheme for all connections.
What testing certifications does this cable meet?
This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What accessories are compatible with Cat6a installations?
This cable is compatible with various Legrand AV components, including the WP246A Cat6a 24-Port Rack Mount Patch Panel and several Cat6a Quick Connect RJ45 Keystone Inserts.
