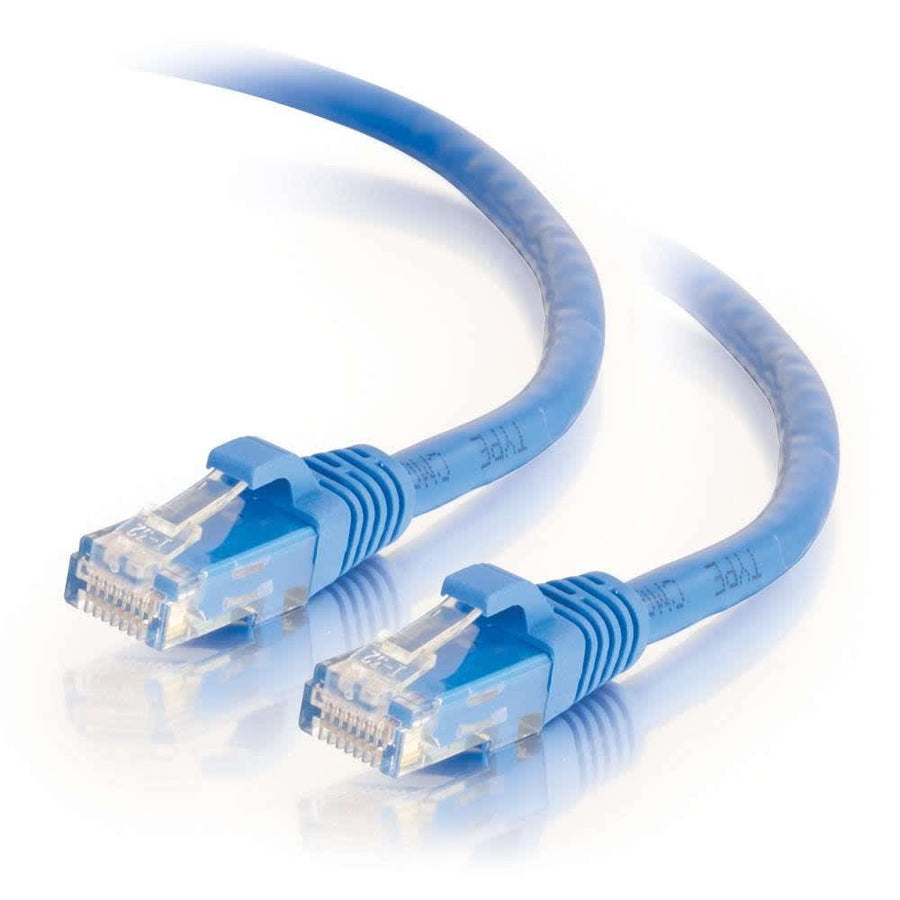

14ft (4.25m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
14ft Cat6 unshielded UTP patch cable in blue with snagless boots for protection against clip damage
The C2G CG27144 is a 14ft (4.3 m) Cat6 unshielded UTP Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This blue cable utilizes 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To ensure high performance, each individual pair is bonded together to maintain twist-spacing throughout the line up to the termination point, which helps reduce impedance and structural return loss (SRL). The assembly features standard RJ-45 male connectors on both ends. For ease of installation, the cable includes molded, snagless boots made of PVC that protect the connector clips from damage during repeated plugging and unplugging while providing extra strain relief. This Cat6 cable is compliant with TIA/EIA standards and is suitable for environments requiring reliable network connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271444 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum distance for this Cat6 cable?
This specific patch cable is 14 ft (4.3 m) long. However, the C2G series offers various lengths up to 150ft.
Does this cable require additional hardware for installation?
This is a standalone patch cable. For complete rack installations, you might also require compatible components like the CG29431 Psiber Pinger Plus or the CG39004 SOHOTest-E™ Residential Cable Tester.
What is the difference between UTP and STP for this cable?
The CG27144 is an Unshielded Twisted Pair (UTP) cable, meaning it does not have an additional shielding layer, making it a standard choice for many office and residential network environments.
Is this cable suitable for high-speed data applications?
Yes, it is a Cat6 cable designed for Gigabit computer networks and bandwidth-intensive applications, meeting TIA/EIA standards.
Will the connector clips break during installation?
The snagless boot design is specifically engineered to protect the RJ-45 clips from snapping or catching when being plugged into ports.
