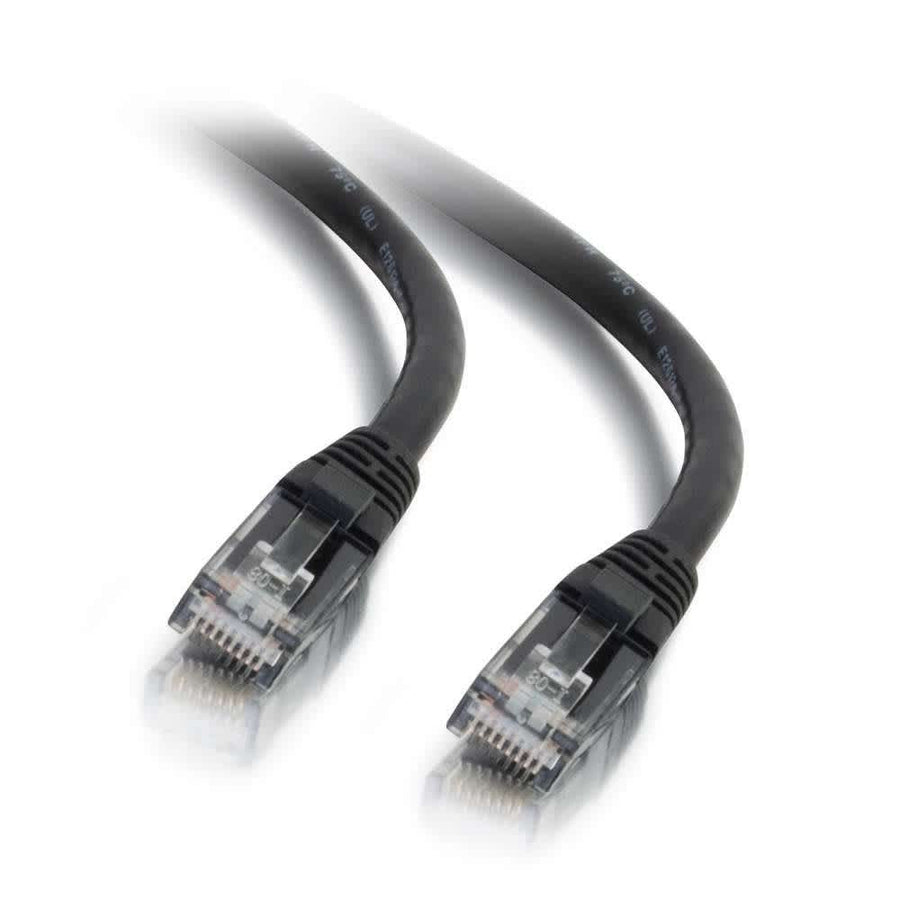

14ft (4.25m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
14ft Cat6 Unshielded UTP Ethernet patch cable in black with snagless boots for strain relief
The C2G CG27154 is a 14ft (4.3m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications including voice, data, and video distribution. This cable meets all TIA/EIA Cat6 standards, helping to reduce impedance and structural return loss (SRL). It is constructed with high-quality stranded copper conductors and uses a T568B wiring scheme. To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point. The cable features 0.24 in (6.2 mm) diameter PVC jacket and PVC connector hoods. A molded snagless boot protects the RJ-45 clips from damage during installation and provides added strain relief for the connection. This black patch cable is part of a series available in 10 colors for network organization and comes in lengths up to 150ft.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271543 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum length available for this cable series?
This Cat6 Snagless Patch Cable series is available in lengths up to 150ft.
Will this cable work with a Cat6 patch panel?
Yes, it is compatible with various hardware such as the C2G 48-Port Rack Mount Patch Panel (48845CC6) or the 24-Port Rack Mount Patch Panel (24845CC6).
What is the wiring scheme used for this patch cable?
The CG27154 utilizes the T568B wiring scheme for standard Ethernet connectivity.
Does this cable feature strain relief for the connectors?
Yes, it features a molded snagless boot that protects the RJ-45 clips and provides extra strain relief during installation.
What certifications does this C2G cable carry?
This product is CE, RoHS, and REACH compliant.
