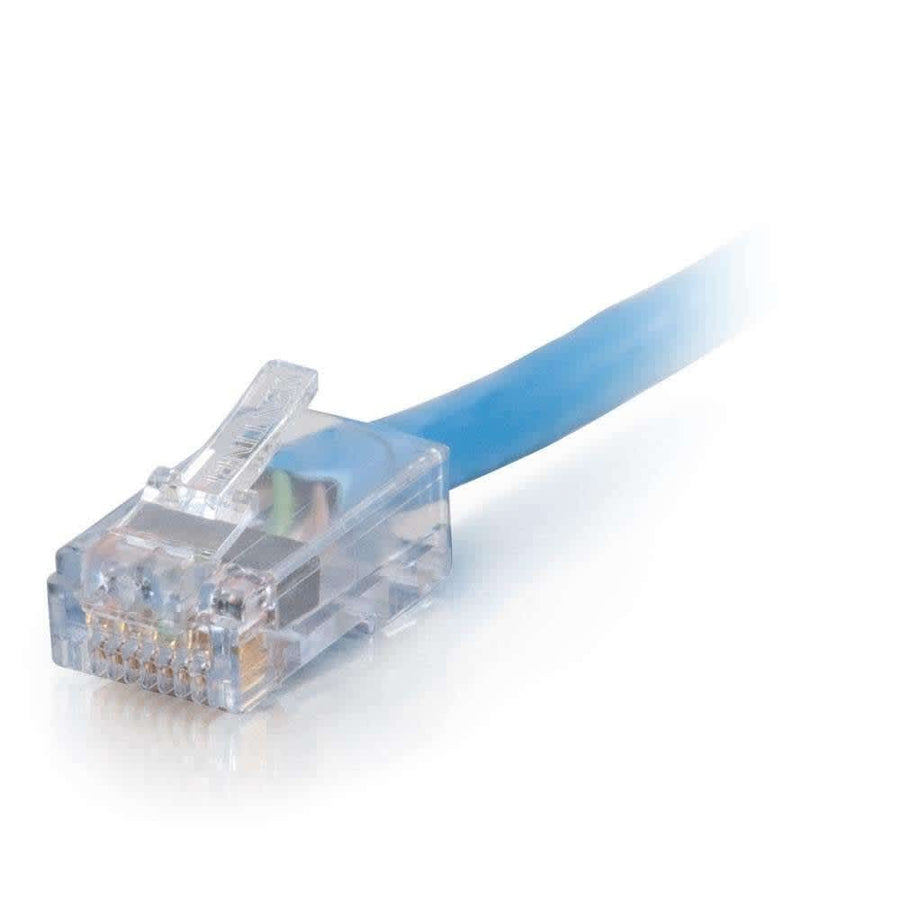

14ft (4.25m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
14 ft Cat6 UTP plenum-rated patch cable, CMP/FT6 rated, 23AWG solid copper, Blue
The C2G CG15282 is a 14 ft (4.3 m) Cat6 Unshielded Twisted Pair (UTP) patch cable specifically designed for environments requiring plenum-rated cabling. This cable is ideal for routing through plenum spaces such as the air handling spaces above dropped ceilings or under raised floors in commercial buildings, schools, and hospitals. It meets all TIA/EIA-568-C.2 standards and is tested to 550MHz to support bandwidth-intensive voice, data, and video distribution applications. Constructed with 23AWG solid copper conductors and featuring 50 micron gold-plated RJ-45 male connectors, this cable is engineered to minimize Near-End Crosstalk (NEXT) and reduce both impedance and structural return loss (SRL). The non-booted connector design provides a streamlined profile for dense connections. This blue cable is TAA compliant and is suitable for high-performance networking in regulated environments.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152828 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Can this cable be used in air handling spaces?
Yes, this is a CMP and FT6 rated cable, making it suitable for installation in plenum spaces above dropped ceilings or under raised floors.
Is the CG15282 tested for high-bandwidth applications?
The CG15282 is tested up to 550MHz, making it capable of handling bandwidth-intensive voice, data, and video distribution.
Does this cable use solid or stranded copper?
The cable features 23AWG solid copper conductors and 50 micron gold-plated RJ-45 male connectors.
Does this cable meet government procurement requirements?
Yes, the CG15282 is TAA compliant and meets TIA/EIA-568-C.2 standards.
Does this model have a protective boot?
This specific SKU is Blue with a non-booted connector design.
