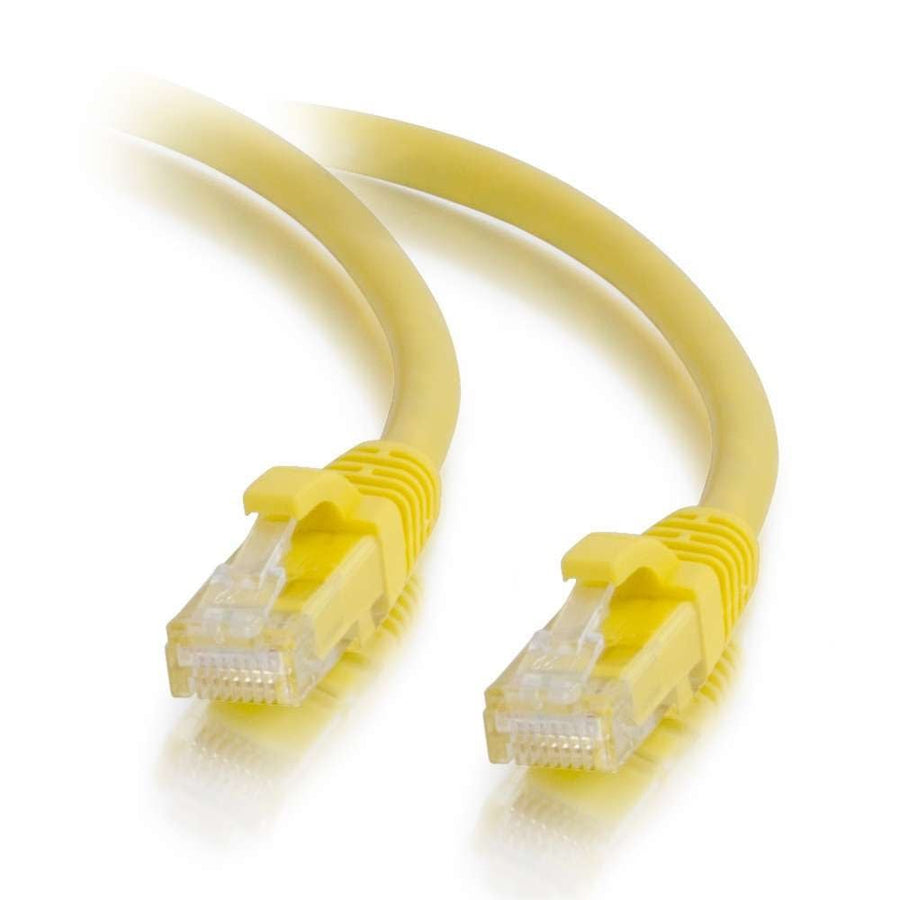

14ft (4.25m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
Yellow Cat5e unshielded UTP patch cable, 14 ft (4.3 m) length, with snagless boots and RJ-45 male connectors
The C2G CG15210 is a 14 ft (4.3 m) Cat5e unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable features a snagless boot design that protects the RJ-45 clips from damage during installation and provides additional strain relief. Constructed with high-quality stranded copper conductors, this cable is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the entire line up to the termination point, which drastically reduces impedance and structural return loss (SRL). This yellow cable utilizes a T568B wiring scheme and is rated for a bandwidth of 350 mHz. It is an ideal solution for fast Ethernet networks requiring reliable connectivity in high-density environments. This SKU is part of a series available in various colors and lengths up to 150ft to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152101 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the maximum bandwidth for the C2G CG15210?
The C2G CG15210 is rated for a bandwidth of 350 mHz.
Will this cable fit my network patch panel or switch?
This cable features standard RJ-45 male connectors and is compatible with various network interface modules, such as the C2G AC1000 6-Port Network Interface Module.
What is the wiring standard for this patch cable?
The C2G CG15210 uses the T568B wiring scheme and is an unshielded twisted pair (UTP) cable.
How does the snagless design help during installation?
The snagless boot covers the RJ-45 clips to prevent them from snapping off while plugging or unplugging the cable, while also providing extra strain relief.
What certifications does this Cat5e cable hold?
This product carries CE, NDAA 889, Prop 65, REACH, RoHS, and TSCA certifications.
