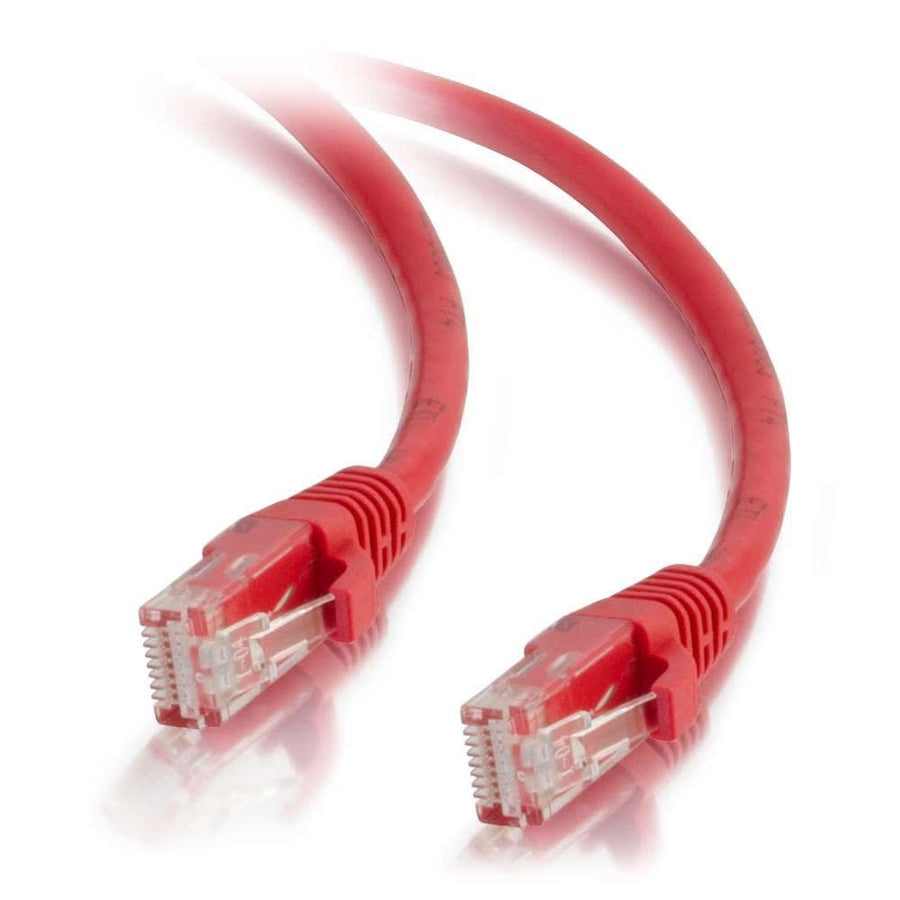

14ft (4.25m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Red
14 ft Red Cat5e snagless unshielded UTP patch cable with stranded copper conductors and T568B wiring
The CG15224 is a 14 ft (4.3 m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth applications involving voice, data, or video distribution. Built with high-quality stranded copper conductors, this cable is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing through to the termination point, which helps reduce impedance and structural return loss (SRL) in fast Ethernet networks. The 0.21 in (5.3 mm) diameter cable features PVC jacket and connector hood materials. Each end is terminated with an RJ-45 Male connector using a T568B wiring scheme. To protect against damage during installation, the cable utilizes a snagless, booted connector type that shields the clips from being broken during plugging or unplugging. This red cable allows for easy color-coding within complex network environments. This product is NDAA 889, RoHS, REACH, CE, Prop 65, and TSCA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152248 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
Will this CG15224 cable work for my Ethernet network?
Yes, this Cat5e patch cable is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution.
What is the wiring scheme for the CG15224?
The CG15224 uses a T568B wiring scheme and features RJ-45 Male connectors on both ends.
Is the CG15224 snagless design helpful for installation?
Yes, the snagless boot protects the connector clips when you are plugging or unplugging the cable in tight spaces.
What is the bandwidth and conductor type of this cable?
This cable provides 350 mHz of bandwidth and uses stranded copper conductors to reduce structural return loss.
Are there other lengths or colors available in this series?
The Cat5e Snagless Patch Cable series is available in up to 150ft lengths and 10 different colors for network color-coding.
