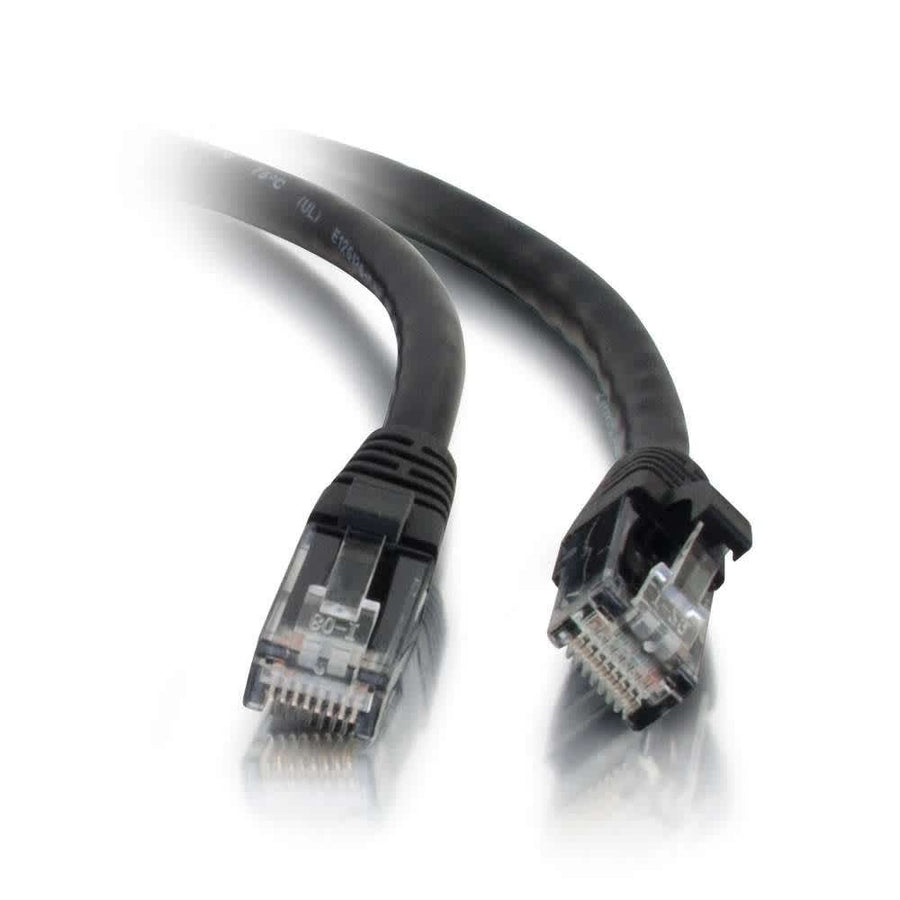

14ft (4.25m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
14ft Cat5e Unshielded UTP Ethernet Patch Cable in Black with a snagless boot for clip protection
The C2G CG15208 is a 14 ft (4.3 m) Cat5e Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, or video distribution applications. This cable utilizes a T568B wiring scheme and features stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. The design includes individual pairs bonded together to help maintain consistent twist-spacing up to the termination point, which reduces impedance and structural return loss (SRL). Each RJ-45 male connector is protected by a molded PVC snagless boot, which provides extra strain relief and prevents the locking clips from being damaged during installation or frequent unplugging. This cable carries a 350 mHz bandwidth and features a 0.21 in (5.3 mm) cable diameter. It is a non-rated standard jacket cable that meets all Cat5e TIA/EIA standards for reliable networking performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152088 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it

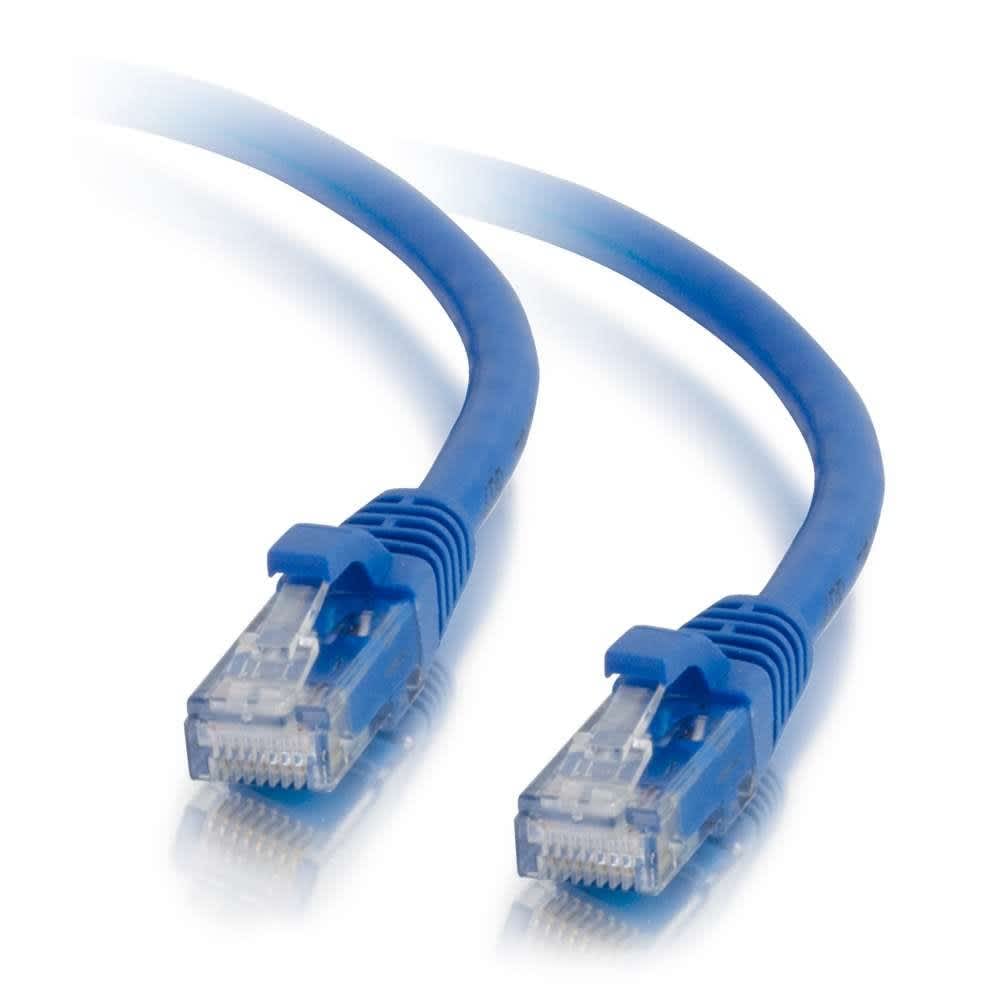

14ft (4.25m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG15206$9.99
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
Questions about this part
What is the maximum bandwidth of the CG15208 cable?
The CG15208 is rated for a bandwidth of 350 mHz, making it suitable for high-speed Ethernet networks.
What is the difference between the snagless boot and standard cables?
The snagless design features a molded PVC hood that protects the connector clips from damage when plugging or unplugging cables in crowded spaces.
Is this cable suitable for high-interference environments?
This is an Unshielded Twisted Pair (UTP) cable. For environments requiring specific shielding, you may need to look at different cable categories.
What is the conductor material used in this patch cable?
The CG15208 uses stranded copper conductors to help maintain twist-spacing and minimize crosstalk.
Are there other colors available in this Cat5e series?
Yes, this series is available in 10 different colors to assist with network color-coding, including blue (CG15206) and others.
