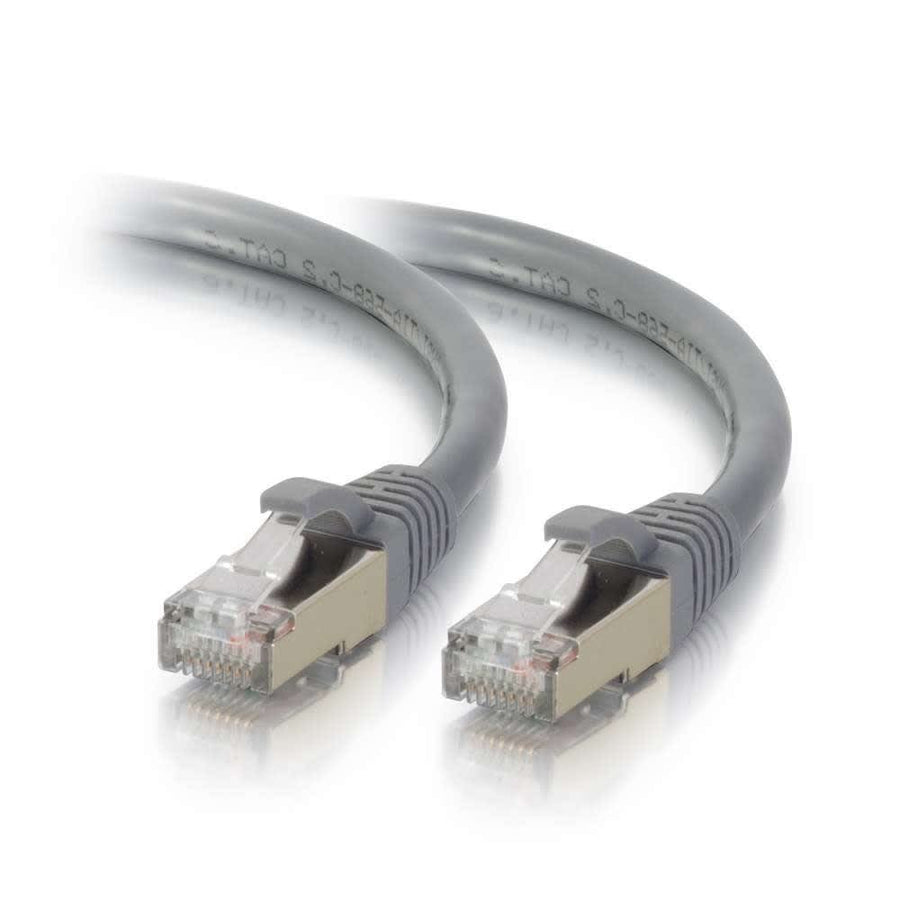

14ft (4.25m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Gray
14 ft (4.3 m) Cat5e shielded STP Ethernet patch cable in gray, featuring snagless boots and 24 AWG stranded copper conductors
The C2G CG27260 is a 14 ft (4.3 m) Cat5e shielded STP Ethernet network patch cable designed for connectivity in environments prone to electromagnetic interference (EMI) or radio frequency interference (RFI). This F/UTP cable features an overall foil shield and a drain wire to provide essential protection against noise. The cable utilizes 24 AWG stranded copper conductors to ensure consistent performance and meets or exceeds TIA/EIA industry standards for return loss and NEXT. Each end is equipped with shielded, 50-micron gold-plated RJ-45 male connectors. The snagless, booted design provides additional strain relief and durability for high-traffic connections. To achieve maximum EMI/RFI protection in a complete end-to-end installation, this cable should be used in conjunction with Cat5e shielded patch panels and Cat5e shielded keystone jacks. This gray patch cable is built with a PVC jacket and HDPE insulation, supporting an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272601 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
