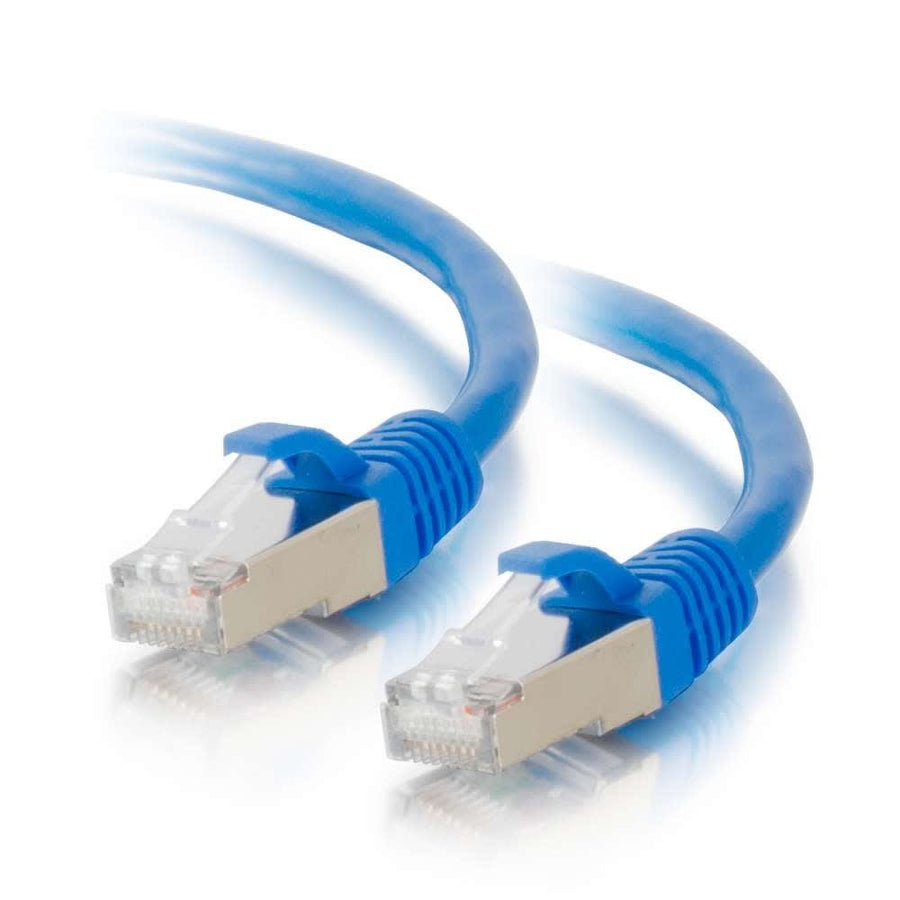

14ft (4.25m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Blue
14ft Cat5e shielded STP patch cable in blue, featuring snagless boots and 24 AWG stranded copper for EMI/RFI protection
The CG27261 is a 14 ft (4.3 m) Cat5e shielded STP Ethernet network patch cable designed for connectivity in environments with high levels of EMI/RFI noise. This F/UTP cable utilizes an overall cable shield and a drain wire to provide protection against electromagnetic interference, meeting or exceeding industry standards for NEXT and return loss. The cable features 24 AWG stranded copper conductors and is wired to the TSB 568B (AT+T 258A) standard. Each end is equipped with a shielded, 50 micron gold-plated RJ-45 male connector protected by a blue PVC snagless boot for added strain relief and durability. The cable is constructed with HDPE insulation and a PVC jacket, maintaining a cable diameter of 0.24 in (6 mm). For end-to-end shielding protection in professional installations, this cable is intended to be used alongside Cat5e shielded patch panels and Cat5e shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272618 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
How do I ensure full shielding for my network installation?
For maximum EMI/RFI protection, use this cable with Cat5e shielded keystone jacks and Cat5e shielded patch panels.
What is the wiring standard for the CG27261 cable?
This patch cable is wired to the TSB 568B (AT+T 258A) standard.
Does this cable include snagless protection for the connectors?
Yes, the CG27261 features booted, snagless connectors to provide extra strain relief and durability.
What certifications does this Cat5e cable carry?
This cable is compliant with CE, REACH, RoHS, TAA, and NDAA 889 standards.
Can I use this cable in high-interference environments?
Yes, the F/UTP shielding is specifically designed for making network connections in noisy, EMI/RFI environments.
