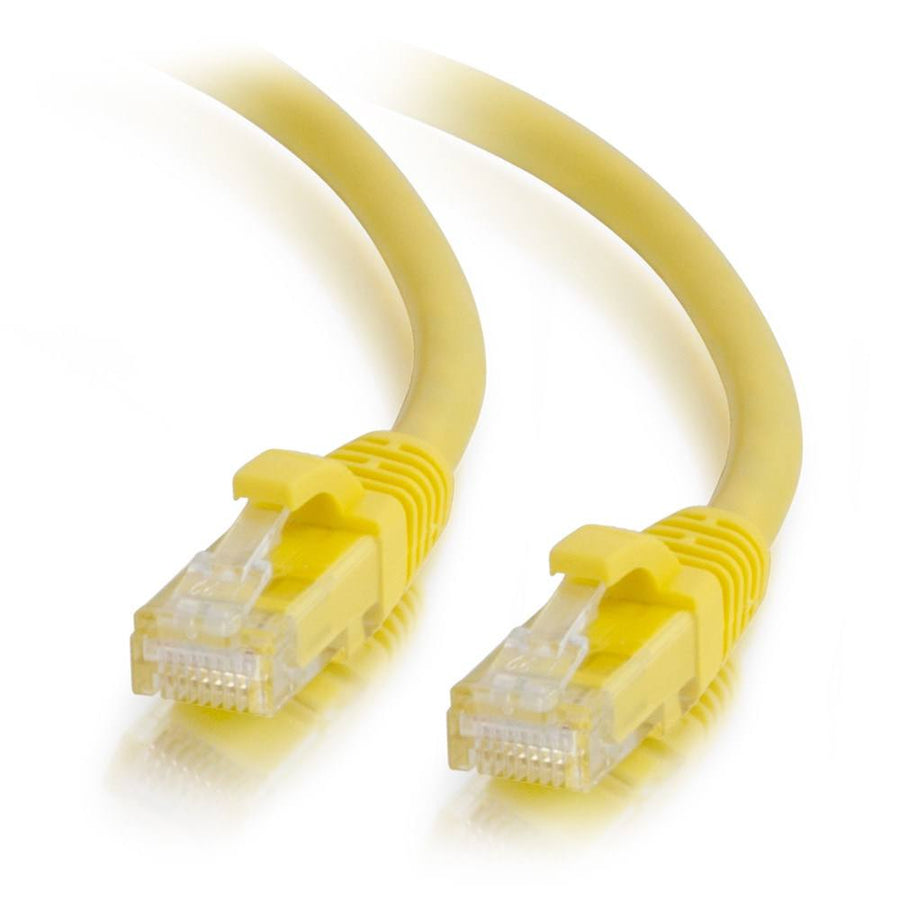

12ft (3.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
12ft Cat6a unshielded UTP patch cable in yellow, featuring a snagless design for high-density network environments
The C2G CG50751 is a 12 ft (3.7 m) Cat6a patch cable designed to support 10GBase-T equipment, including network adapters, switches, routers, hubs, and patch panels. This unshielded UTP cable enables 10 Gigabit data transmission over a 4-pair copper configuration for connections reaching up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved performance against alien crosstalk. The cable features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. To facilitate installation in high-density switch applications, the connectors include a snagless, booted PVC hood to protect the RJ-45 male ends. This yellow cable is part of a broader series available in multiple lengths and colors, making it an ideal choice for color-coded network management. Each cable is marked with an individual length label for easy identification during deployment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507512 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this CG50751 cable support 10 Gigabit Ethernet?
Yes, this Cat6a cable is designed for 10GBase-T equipment and enables 10 Gigabit data transmission over 4-pair copper cables.
Is the CG50751 suitable for high-density patch panels?
Yes, the snagless connector design is specifically intended for high-density switch applications to prevent accidental disconnects and simplify handling.
What is the maximum length for 10GbE transmission with this cable?
This Cat6a patch cable supports 10 Gigabit Ethernet connections for distances up to 100 meters.
What accessories are compatible with Cat6a keystone installations?
This cable is compatible with various Cat6a accessories, including the WP346AYE Yellow Keystone Insert and the WP246A 24-Port Rack Mount Patch Panel.
What testing standards does this patch cable meet?
Each cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
