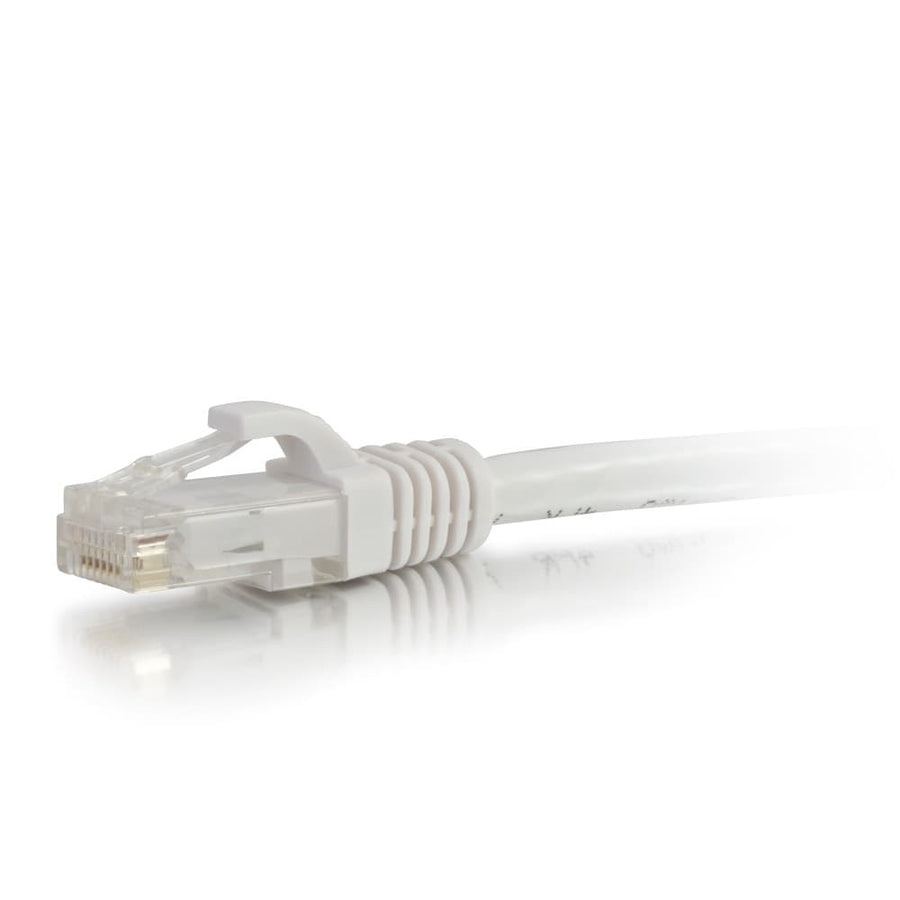

12ft (3.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - White
12 ft (3.7 m) Cat6a snagless UTP patch cable, white, 26AWG stranded copper, designed for 10GBase-T high-density applications
The C2G CG50770 is a 12 ft (3.7 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in white. Engineered to support 10GBase-T ports and equipment, this cable facilitates 10 Gigabit data transmission over a 4 pair copper medium, allowing connections for distances up to 100 meters. This specific SKU utilizes 26AWG (7/0.16) bare copper stranded conductors with HDPE (High-density Polyethylene) insulation and a PVC jacket. Each cable features a snagless, booted RJ-45 male to RJ-45 male connector configuration, which is specifically designed to protect the locking tabs in high-density switch environments. The construction includes PVC connector hoods and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. For large-scale network deployments, individual cables feature a length label to assist with identification. This cable is rated for temperatures up to 75°C and is designed to provide improved alien crosstalk performance compared to standard Cat6 cabling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507703 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the C2G CG50770 work with 10 Gigabit Ethernet equipment?
Yes, this Cat6a patch cable is designed for 10GBase-T ports, enabling 10 Gigabit data transmission for network adapters, hubs, switches, and routers.
Is this cable suitable for high-density switch environments?
The C2G CG50770 features a snagless, booted connector design, which protects the RJ-45 tabs and is ideal for crowded, high-density switch applications.
What is the maximum transmission distance for this Cat6a cable?
This cable allows for connections up to 100 meters when used in a 10 Gigabit data transmission environment.
What testing standards does this patch cable meet?
Every cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
Does this cable include a label for identification?
Yes, each individual cable features a length label to facilitate easy identification during network installation and management.
