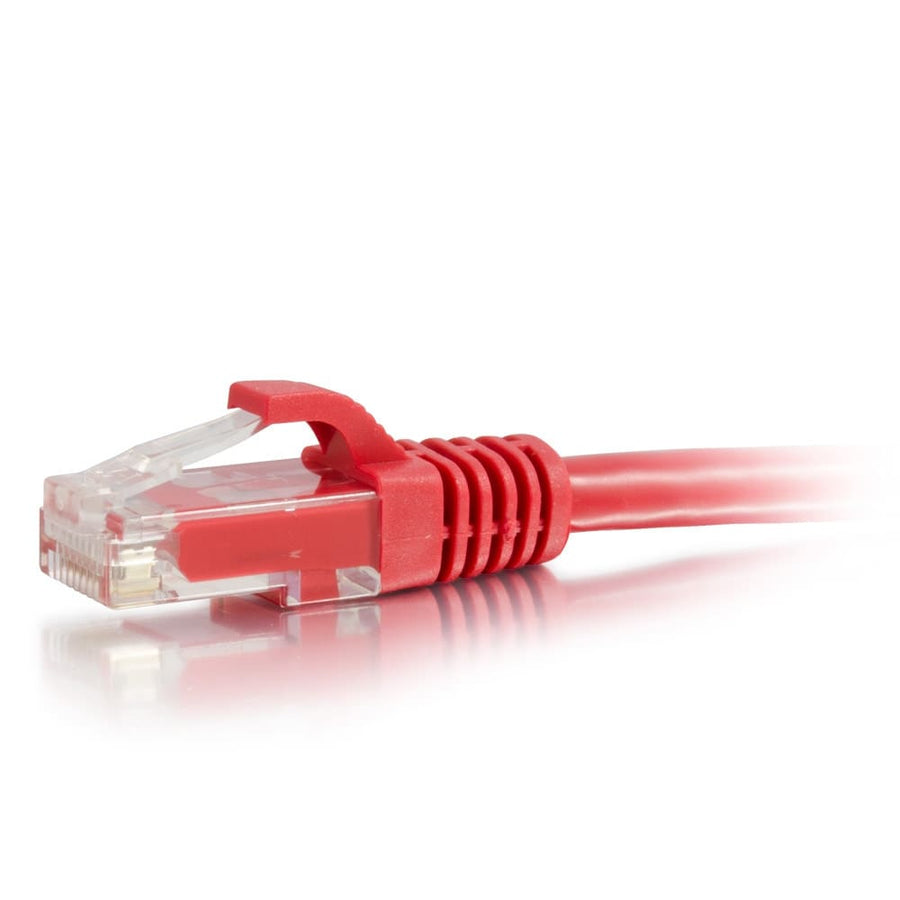

12ft (3.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Red
12ft (3.7m) Cat6a unshielded UTP Ethernet patch cable in red with snagless boots for high-density applications
The CG50808 is a 12 ft (3.7 m) Cat6a patch cable designed for high-speed 10GBase-T network environments. This unshielded UTP cable utilizes 26AWG bare copper stranded conductors to facilitate 10 Gigabit data transmission over 4-pair copper cabling, supporting connections up to 100 meters. Fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, this cable is constructed with HDPE insulation and a PVC jacket to ensure reliable performance. The snagless, booted RJ-45 male connectors are ideal for high-density switch applications, providing protection for the termination while allowing for easy identification in complex racks. This red cable is part of the C2G Cat6a Patch Cable series, which is available in various colors to assist with network color-coding. Each individual cable includes a length label for quick identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508083 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10GbE speeds?
Yes, this cable is designed for 10GBase-T ports and equipment, enabling 10 Gigabit data transmission up to 100 meters.
Is this cable suitable for high-density switches?
The CG50808 features a snagless connector type, which is ideal for use in high-density switch applications to prevent accidental disconnection.
What is the wiring scheme for this patch cable?
This C2G Cat6a patch cable uses the 568B wiring scheme.
What additional accessories are compatible with this series?
Compatible components include the WP246A 24-Port Rack Mount Patch Panel and various Cat6a Keystone Inserts like the WP346ABK.
Does this cable meet TIA/EIA standards?
Yes, it is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
