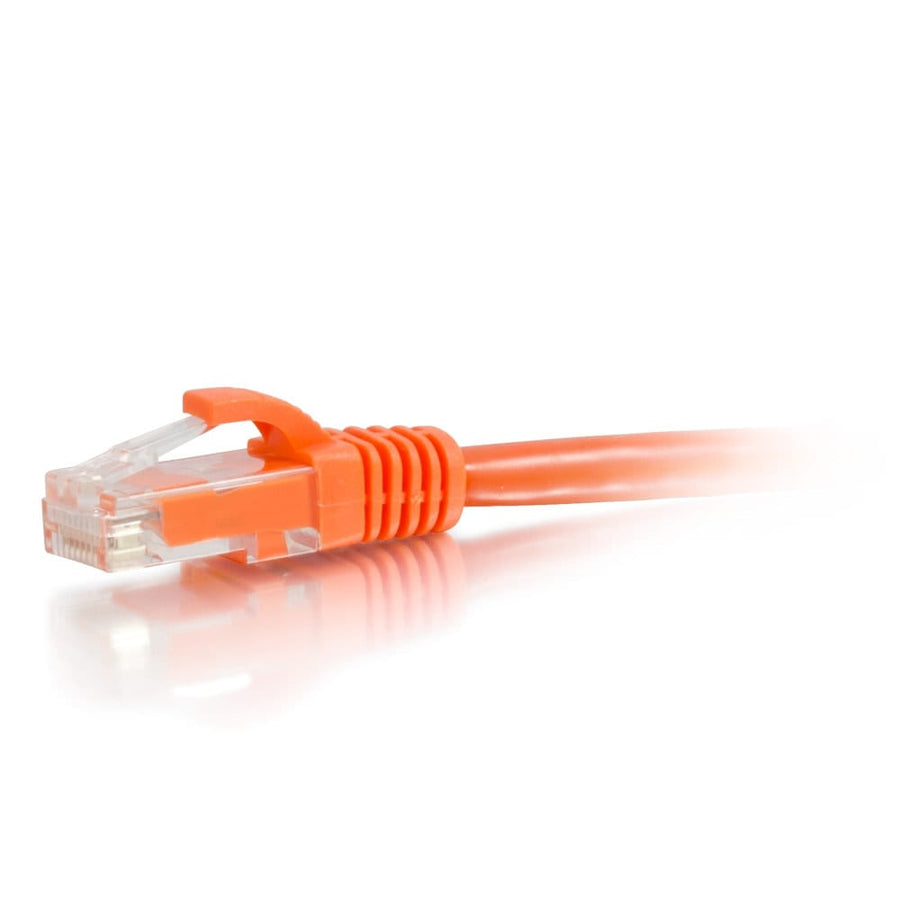

12ft (3.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
12 ft (3.7 m) Cat6a snagless patch cable in orange, supporting 10GbE data transmission via stranded copper conductors
The C2G CG50846 is a 12 ft (3.7 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in orange. Designed for high-performance networking, this cable supports 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It enables 10 Gigabit data transmission over 4-pair copper cabling for connections reaching up to 100 meters. This specific SKU features a snagless boot design, making it ideal for high-density switch applications where space is limited. The cable is constructed with 26AWG bare copper stranded conductors and HDPE insulation. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring improved alien crosstalk performance. The orange jacket is made of PVC and features an individual length label on each cable for easy identification during installation and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508465 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG50846 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over a 4-pair copper cable for distances up to 100 meters.
Is this patch cable suitable for high-density switches?
Yes, this cable features a snagless connector design, which protects the jack and is specifically ideal for high-density switch applications.
What is the wiring scheme for the CG50846?
This Cat6a patch cable utilizes a 568B wiring scheme.
What other accessories are compatible with Cat6a installations?
This cable is compatible with several Cat6a components, including the WP346AIV Quick Connect Keystone Insert and the WP246A 24-Port Rack Mount Patch Panel.
What certifications does this cable hold?
This product is listed with CE, NDAA 889, Prop 65, REACH, RoHS, and TSCA certifications.
