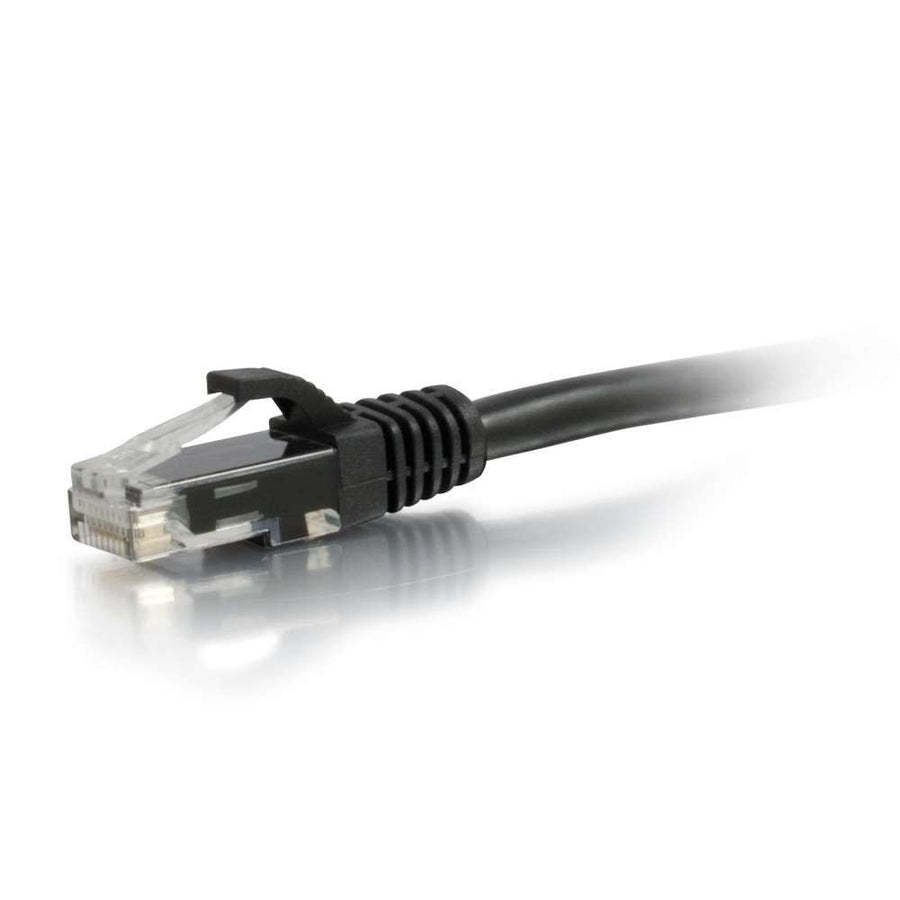

12ft (3.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
12ft Cat6a snagless UTP patch cable, 26AWG stranded copper, supporting 10GBase-T applications
The C2G CG00733 is a 12 ft (3.7 m) Cat6a snagless unshielded UTP Ethernet network patch cable designed for 10GBase-T ports and high-speed equipment. This cable enables 10 Gigabit data transmission over a 4-pair copper conductor, facilitating connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance for high-density environments. The construction features 26AWG stranded bare copper conductors with HDPE (High-density Polyethylene) insulation and a PVC jacket. Each connector is a snagless, booted RJ-45 male type with a PVC hood to protect the termination. This black patch cable uses a 568B wiring scheme and is rated for temperatures up to 75°C. It is a suitable solution for connecting network adapters, hubs, switches, routers, and patch panels in professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007333 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the CG00733 work with my Cat6a patch panel?
Yes, this cable is designed for use with Cat6a hardware, including the WP246A 24-Port Rack Mount Patch Panel and various Cat6a Keystone Inserts.
What is the maximum data rate for this CG00733 cable?
The CG00733 supports 10 Gigabit Ethernet (10GBase-T) transmission over its 12 ft (3.7 m) length.
Is this cable suitable for high-density switch environments?
Yes, the snagless boot design protects the connector and is specifically intended for use in high-density switch applications.
Does this cable meet TAA requirements?
No, the CG00733 is not TAA compliant.
What is the wiring scheme for the CG00733?
This patch cable utilizes the 568B wiring scheme for all connections.
