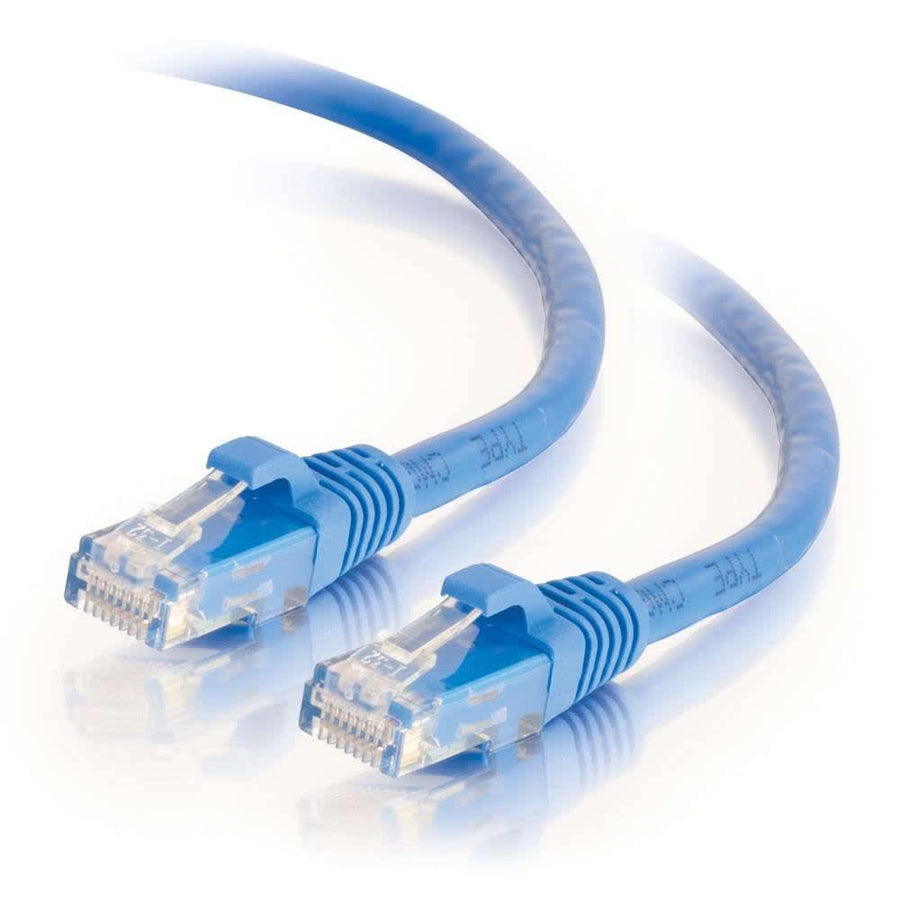

125ft (38.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
125ft blue Cat6 snagless patch cable, unshielded UTP with stranded copper conductors for high-bandwidth networking
The C2G CG27148 is a 125ft (38.1 m) Cat6 snagless patch cable designed for high-bandwidth applications requiring fast Ethernet, Gigabit computer networks, or intensive voice, data, and video distribution. This unshielded (UTP) cable features 24 AWG stranded copper conductors, which help to minimize Near-End Crosstalk (NEXT) levels. The design utilizes individual pairs that are bonded together to maintain consistent twist-spacing throughout the line up to the termination point. This construction helps to drastically reduce both impedance and structural return loss (SRL). Each RJ-45 male connector is housed in a PVC snagless boot that protects the clips from damage during repeated plugging and unplugging while providing extra strain relief. This blue cable is part of a series available in up to 10 colors to assist with network color-coding. It is rated for T568B wiring schemes and complies with TIA/EIA standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 125 ft (38.1 m) |
| Shield Type | UTP |
| Shipping Weight | 3.37 lbs (1.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, this Cat6 snagless patch cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth for data or video distribution.
What is the wiring scheme for the CG27148?
The CG27148 uses the T568B wiring scheme with RJ-45 male connectors on both ends.
Is this cable shielded or unshielded?
This is an unshielded (UTP) Cat6 cable featuring stranded copper conductors designed to minimize Near-End Crosstalk (NEXT).
How does the snagless design benefit installation?
The molded snagless boot protects the connector clips from being damaged when plugging or unplugging the cable and provides additional strain relief.
What other network components are compatible with Cat6?
This cable is compatible with various Cat6 hardware, such as the 48-port Rack Mount Patch Panel (48845CC6) or the 24-port Rack Mount Patch Panel (24845CC6).
