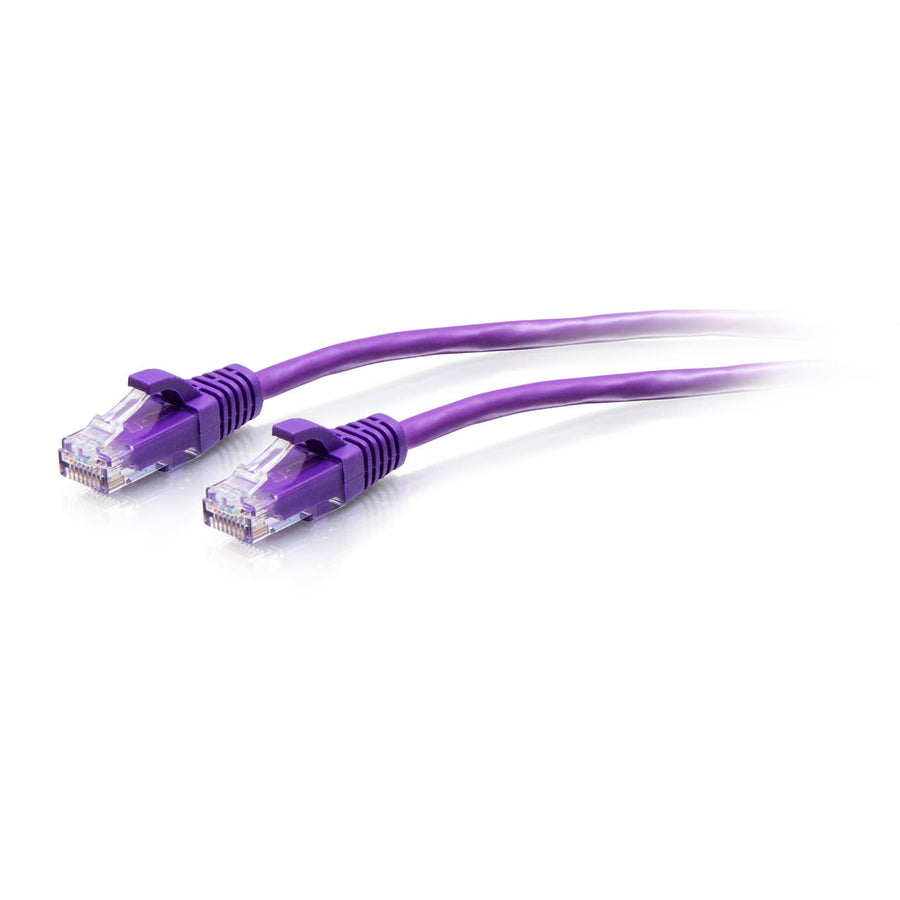

10ft (3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Purple
10ft Cat6a slim Unshielded (UTP) patch cable in Purple, featuring 28AWG conductors and a snagless boot for high-density installations
The C2G30192 is a 10ft (3.1 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in Purple. Engineered for high-density cabling environments like datacenters and large conference rooms, this cable utilizes 28AWG stranded copper conductors to significantly reduce the overall cable diameter to 0.19 in (4.8 mm) ± 0.15mm (about 0.01 in). This slim profile increases airflow in crowded racks and provides the flexibility needed for tight-space installations. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each RJ-45 male connector is housed in a PVC snagless boot to provide strain relief and prevent snags during installation. This UTP cable is also suitable for Power over Ethernet (PoE) and VoIP applications. It is compliant with REACH, RoHS, and TSCA standards and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301929 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum data rate for the C2G30192?
This Cat6a patch cable supports data transfer rates up to 10 GBPS, making it suitable for high-speed networking and HDBaseT technology.
How does the slim design affect cable management?
The 28AWG construction results in a 0.19 in (4.8 mm) cable diameter, which provides greater flexibility in tight spaces and increases airflow in high-density racks compared to standard cables.
What accessories are compatible with this Cat6a cable?
This cable is compatible with various accessories, including the WP346AGN Cat6a Quick Connect RJ45 Keystone Insert and the WP246A 24-Port Rack Mount Patch Panel.
Is this cable suitable for PoE applications?
Yes, the Cat6a technology and construction used in this cable make it suitable for Power over Ethernet (PoE) and VoIP situations.
Does this cable include a warranty?
Yes, the C2G30192 is backed by a lifetime warranty from the manufacturer.
