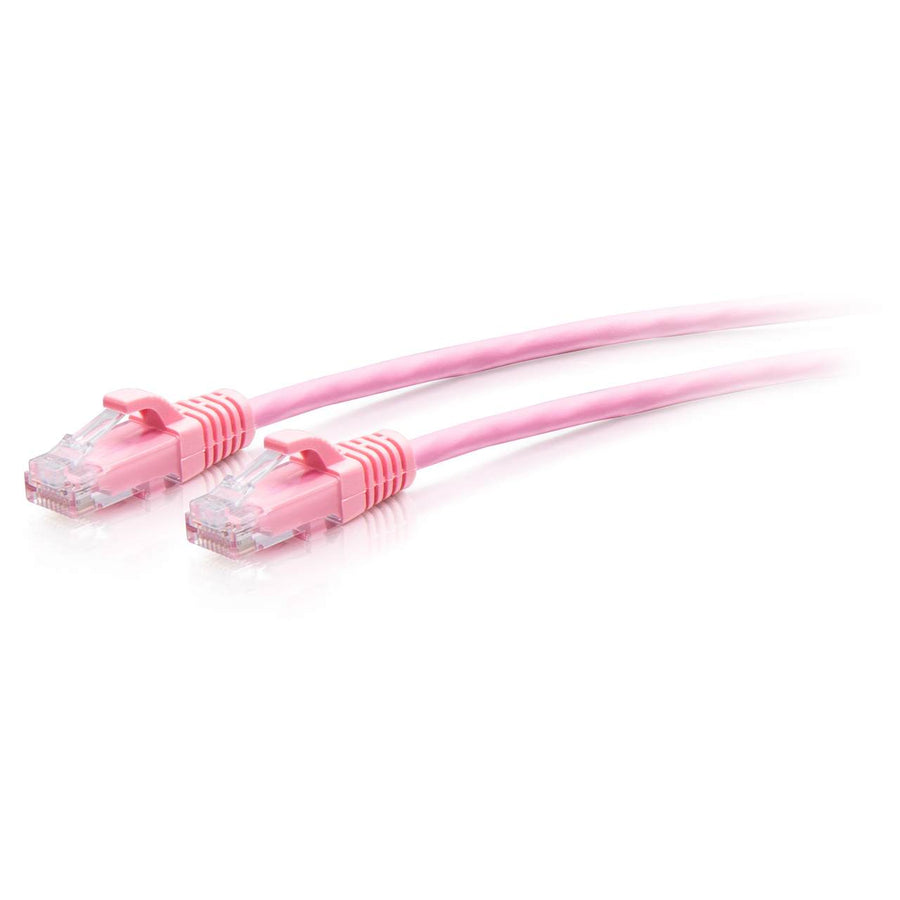

10ft (3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Pink
10ft Pink Cat6a Slim Ethernet patch cable featuring 28AWG construction and snagless boots for high-density environments
The C2G30199 is a 10 ft (3.1 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments. This pink cable utilizes 28AWG stranded copper conductors, which significantly reduces the cable diameter to 0.19 in (4.8 mm). This slim profile increases airflow in crowded racks and provides much greater flexibility than standard Cat6 cables, making it a practical choice for tight spaces in datacenters or large conference rooms. The cable supports data transfer rates of up to 10 GBPS and is suitable for Power over Ethernet (PoE) and VoIP applications. Each end features an RJ-45 Male connector with gold-plated contacts and a PVC snagless hood to provide strain relief and prevent snags during installation. This UTP cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301998 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work for PoE and VoIP setups?
Yes, this Cat6a cable is designed to support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications.
Is the C2G30199 suitable for high-density datacenter environments?
Yes, the 28AWG slim design allows for increased airflow and more flexible routing in high-density installations.
Does this cable support 10Gbps speeds?
The C2G30199 is a Cat6a patch cable that supports data transfer rates up to 10 GBPS.
What is the difference between this and standard Cat6 cables?
This Cat6a cable provides five times more bandwidth than Cat5e and supports much higher data speeds while maintaining a smaller surface area for better airflow.
Which documents are available for technical submittals?
Installers can reference the Cat6a Slim Patch Cable Series Datasheet or the C2G Ethernet Patch Cable Matrix for detailed technical information.
