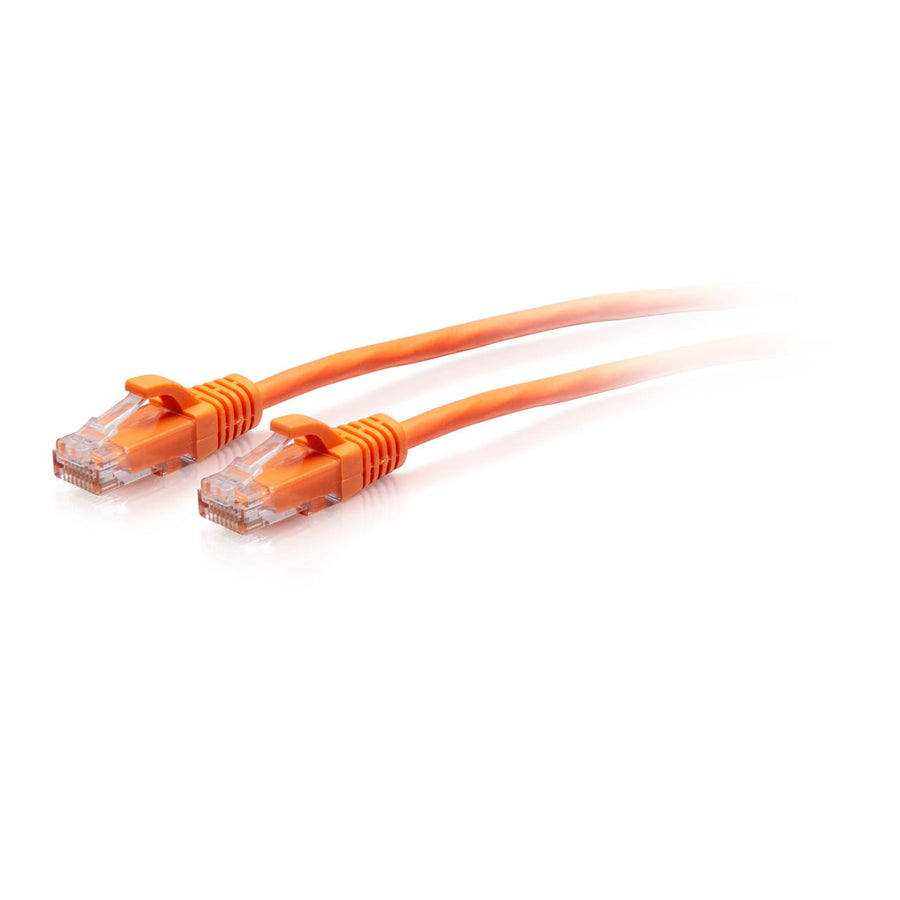

10ft (3m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Orange
10ft Cat6a slim unshielded patch cable with 28AWG conductors and snagless boots, ideal for high-density data environments
The C2G30178 is a 10ft (3.1 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in orange, designed specifically for high-density cabling applications. This cable is an effective solution for crowded environments like large conference rooms and datacenters where airflow and space are critical. Using 28AWG stranded copper conductors, this slim cable maintains a diameter of only 0.19 in (4.8 mm), which allows for significantly increased airflow in tight rack spaces compared to standard Cat6 cables. It supports data transfer rates of 10 GBPS and is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications. Each RJ-45 male connector features a molded, snagless PVC hood to provide strain relief and prevent accidental disconnections during installation. This Cat6a cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.42 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301783 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this C2G30178 cable support 10Gbps speeds?
Yes, this Cat6a patch cable supports data transfer rates up to 10 GBPS.
What is the benefit of the 28AWG construction for my installation?
The 28AWG slim design reduces the cable diameter to 0.19 in (4.8 mm), which increases airflow in tight spaces and offers greater flexibility.
Is this cable suitable for PoE or VoIP applications?
Yes, the Cat6a technology used in this cable is designed to support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) situations.
What is the difference between this slim cable and standard Cat6?
This Cat6a cable provides five times more power than Cat5e and doubles the minimum bandwidth of Cat6, with a smaller surface area for better airflow.
Can I use this with Cat6a keystone inserts?
Yes, it is compatible with various Cat6a Quick Connect RJ45 Keystone Inserts, including part number WP346AOR in orange.
