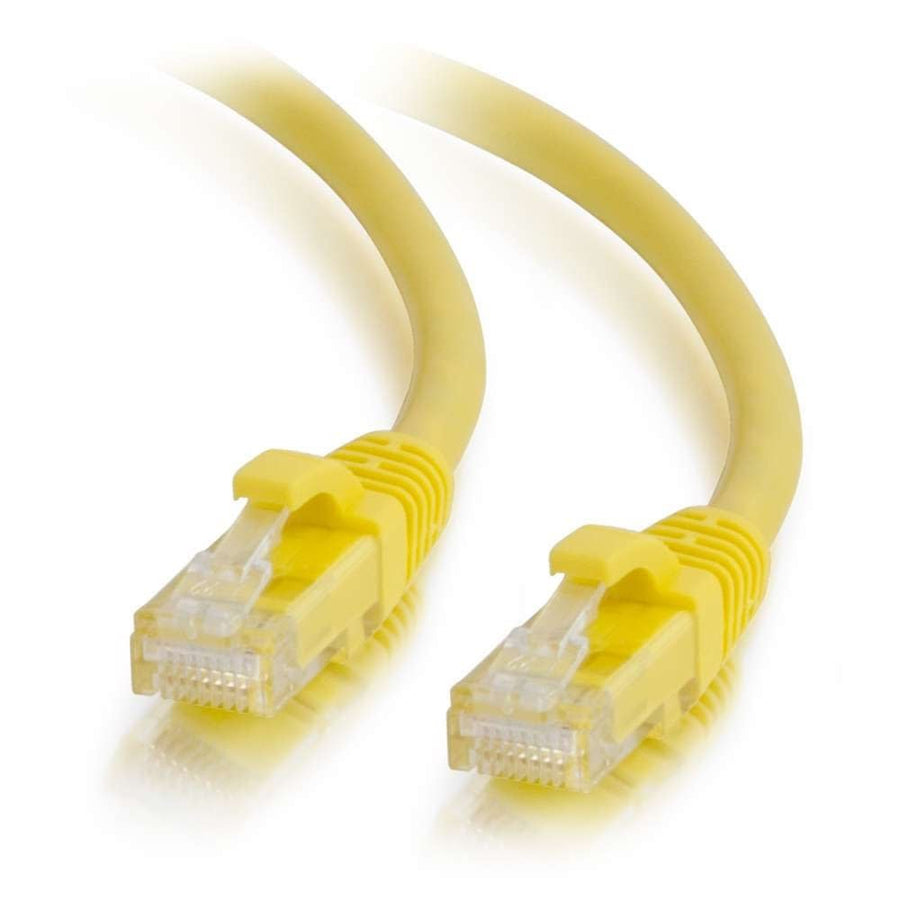

10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
Yellow Cat6 Unshielded UTP Ethernet patch cable, 10ft (3.1m) length, featuring snagless boots and stranded copper conductors
The C2G CG27193 is a 10ft (3.1m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth applications including voice, data, and video distribution. This cable meets all Cat6 TIA/EIA standards, effectively reducing impedance and structural return loss (SRL). Each individual pair is bonded to maintain precise twist-spacing throughout the entire 3.1m length, right up to the RJ-45 termination points. The copper stranded conductors are engineered to minimize Near-End Crosstalk (NEXT) levels for reliable Gigabit performance. To protect the assembly during installation and frequent handling, the connectors feature molded snagless PVC boots that prevent accidental clip damage and provide essential strain relief. This yellow cable is part of a larger series available in 10 different colors to facilitate network color-coding in complex rack environments. It utilizes a standard T568B wiring scheme and is rated for standard, non-rated environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271932 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, the C2G CG27193 is a Cat6 rated cable designed for fast Ethernet and Gigabit computer networks requiring high bandwidth.
How does the snagless design benefit installation?
The snagless boot protects the RJ-45 clips from snapping off when plugging or unplugging the cable, providing extra strain relief.
Is this cable suitable for high-density patch panels?
Yes, it is compatible with various accessories like the 48-port Cat6 Rack Mount Patch Panel (48845CC6) or 24-port version (24845CC6).
What is the conductor material and construction for this cable?
This cable uses stranded copper conductors and features an unshielded (UTP) construction with a 0.24 in (6.2 mm) diameter.
Does this cable come with a warranty?
Yes, this C2G patch cable is backed by a lifetime warranty.
