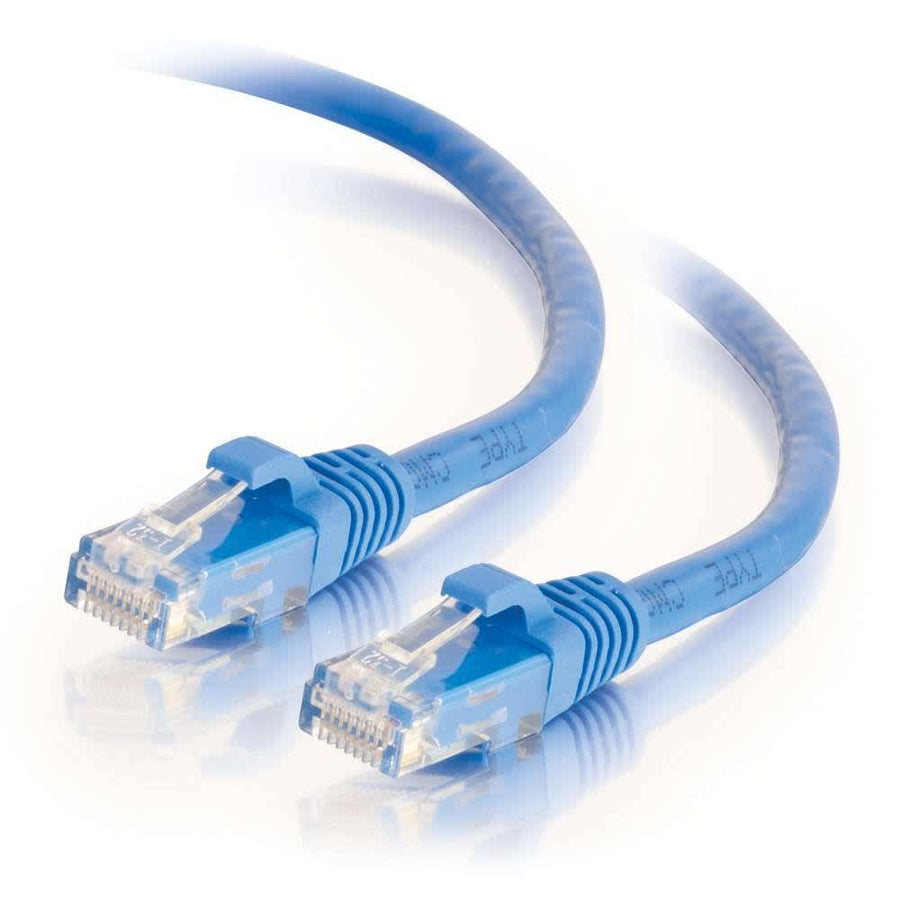

10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack - 50 Pack - Blue
Blue Cat6 UTP patch cables, 10 ft (3.1 m) length, supplied in a 50-pack for high-density network deployments
The C2G CG29013 is a bulk 50-pack of Cat6 Unshielded Twisted Pair (UTP) patch cables designed for bandwidth-intensive voice, data, or video distribution. Each 10 ft (3.1 m) cable is constructed with high-quality stranded copper conductors and a 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. These cables are built to meet all Cat6 TIA/EIA standards, significantly reducing impedance and structural return loss (SRL). The wiring scheme follows the T568B standard for standardized installation across network environments. To facilitate easier management in high-density racks or tight spaces, each connector features a molded, snagless PVC boot that provides strain relief and prevents accidental snags during the installation process. These blue cables are suitable for environments requiring a specific color-coding scheme for organized cable management. The cables operate within a temperature range of -4°F to 176°F (-20°C to 80°C) and are built with a PVC jacket and hood material.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 0.9 in (22.8 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Package Count | 50 |
| Shield Type | UTP |
| Shipping Weight | 14.42 lbs (6.5 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 19
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120290131 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is included in this C2G CG29013 pack?
This is a multipack containing 50 individual 10 ft (3.1 m) blue Cat6 patch cables.
Will these cables work with my patch panel?
These Cat6 cables are compatible with various rack equipment, including the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (24845CC6).
What is the wiring scheme for these patch cables?
All cables in this CG29013 pack are terminated using the T568B wiring scheme.
Are these cables suitable for high-density rack environments?
Yes, the snagless boot design helps prevent snags in dense configurations, and they are compatible with multiple rack mount series like the WP48RM 48-Port Keystone Rack Mount Patch Panel.
What is the operating temperature range for these cables?
The cables are rated for operation in temperatures ranging from -4°F to 176°F (-20°C to 80°C).
