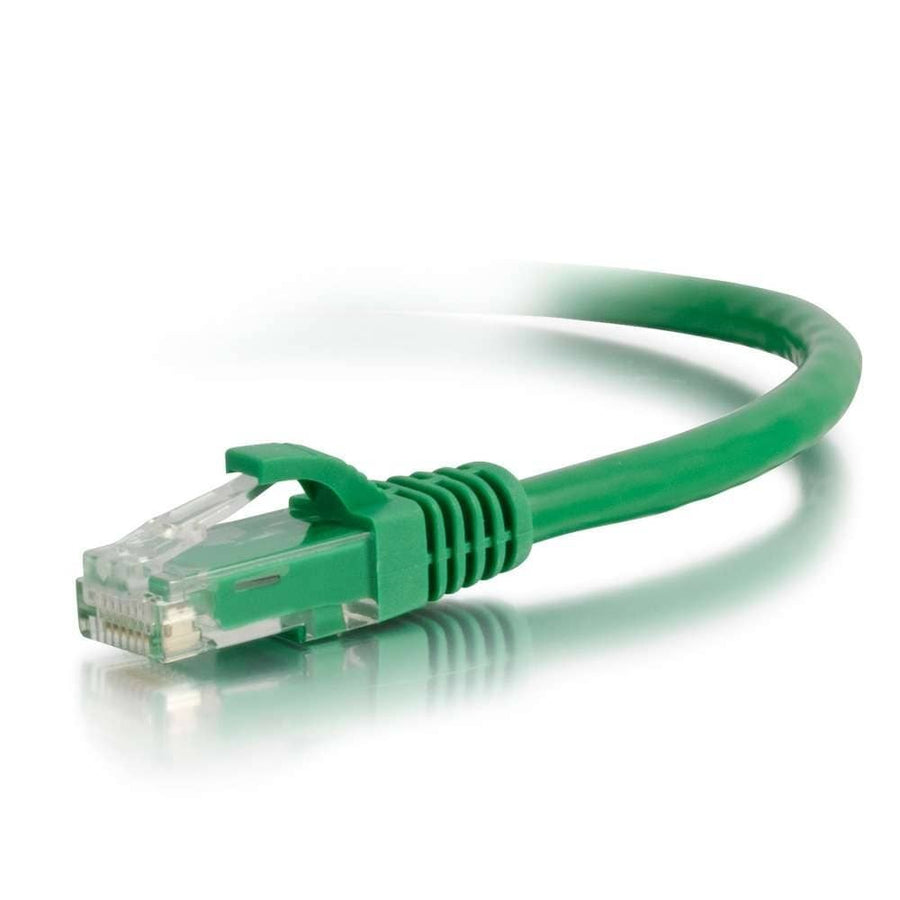

10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Green
10ft Cat6 UTP patch cable in Green with snagless boots and RJ-45 male connectors
The C2G CG27173 is a 10ft (3.1 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet network patch cable finished in green. Designed for bandwidth-intensive voice, data, or video distribution, this cable meets all Cat6 TIA/EIA standards and is engineered to drastically reduce impedance and structural return loss (SRL). The cable features stranded copper conductors and a 24 AWG wire gauge, with each individual pair bonded together to maintain consistent twist-spacing up to the termination point. This construction helps minimize Near-End Crosstalk (NEXT) levels. The snagless, molded PVC boots protect the RJ-45 male clips from damage during installation and provide extra strain relief. This cable utilizes a T568B wiring scheme and is ideal for high-speed Gigabit computer networks. The green color facilitates easy network color-coding. This product is covered by a lifetime warranty and complies with RoHS, REACH, CE, and NDAA 889 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271734 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work with my rack mount patch panel?
Yes, this cable is compatible with various C2G hardware, including the 48-Port Rack Mount Patch Panel (48845CC6) and the 24-Port Rack Mount Patch Panel (24845CC6).
What is the wiring standard for the CG27173?
This patch cable follows the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is this cable suitable for high-speed data environments?
The CG27173 is a Cat6 UTP cable designed for Gigabit computer networks and bandwidth-intensive video or data distribution applications.
Does this cable provide protection for the connector clips?
Yes, the snagless, booted design is specifically engineered to protect the RJ-45 clips from being broken during plugging and unplugging.
What compliance standards does this green patch cable meet?
This cable is compliant with RoHS, REACH, CE, and NDAA 889 standards.
