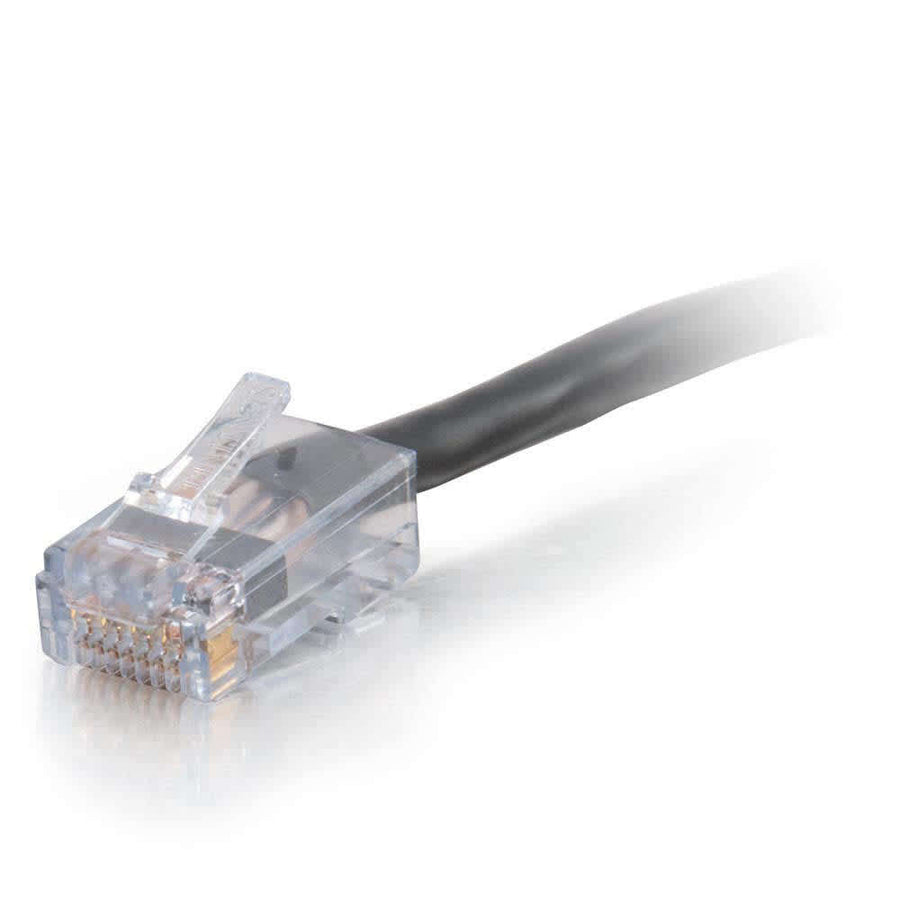

10ft (3m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Black
10ft Cat6 Plenum CMP-rated UTP patch cable, black, 23AWG stranded copper, with non-booted RJ45 connectors
The C2G CG15295 is a 10ft (3.1 m) Cat6 UTP patch cable designed to meet the strict building code requirements for cabling in plenum spaces. This CMP-rated and FT6-rated cable is ideal for routing through plenum spaces above dropped ceilings or under raised floors in commercial environments like hospitals and schools. Built with 23AWG stranded copper conductors, this cable is tested to 550MHz and meets all TIA/EIA-568-C.2 standards. The non-booted design features 50 micron gold plated RJ45 male connectors on both ends to ensure reliable connectivity for bandwidth-intensive voice, data, and video applications. This black cable is TAA compliant and helps minimize Near-End Crosstalk (NEXT) while reducing impedance and structural return loss (SRL). It is suitable for high-performance network environments where plenum-rated jacket material is a requirement for fire safety compliance.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Black |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152958 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG15295 suitable for plenum spaces?
Yes, this is a plenum-rated cable with a CMP rating and FT6 rating, making it suitable for installation in plenum spaces above dropped ceilings or under raised floors.
What is the maximum frequency for this Cat6 cable?
The CG15295 is tested to 550MHz, ensuring it meets the performance requirements for high-bandwidth data, voice, and video applications.
Will this cable work in a TAA compliant installation?
Yes, the CG15295 is TAA compliant, making it appropriate for projects requiring adherence to the Trade Agreements Act.
What type of connectors does the CG15295 use?
This cable features non-booted, 50 micron gold plated RJ45 male connectors on both ends.
What is the difference between this and other CG15295 series cables?
This SKU is a 10ft black cable; other versions in the series offer different lengths up to 100ft and different colors like blue or gray.
