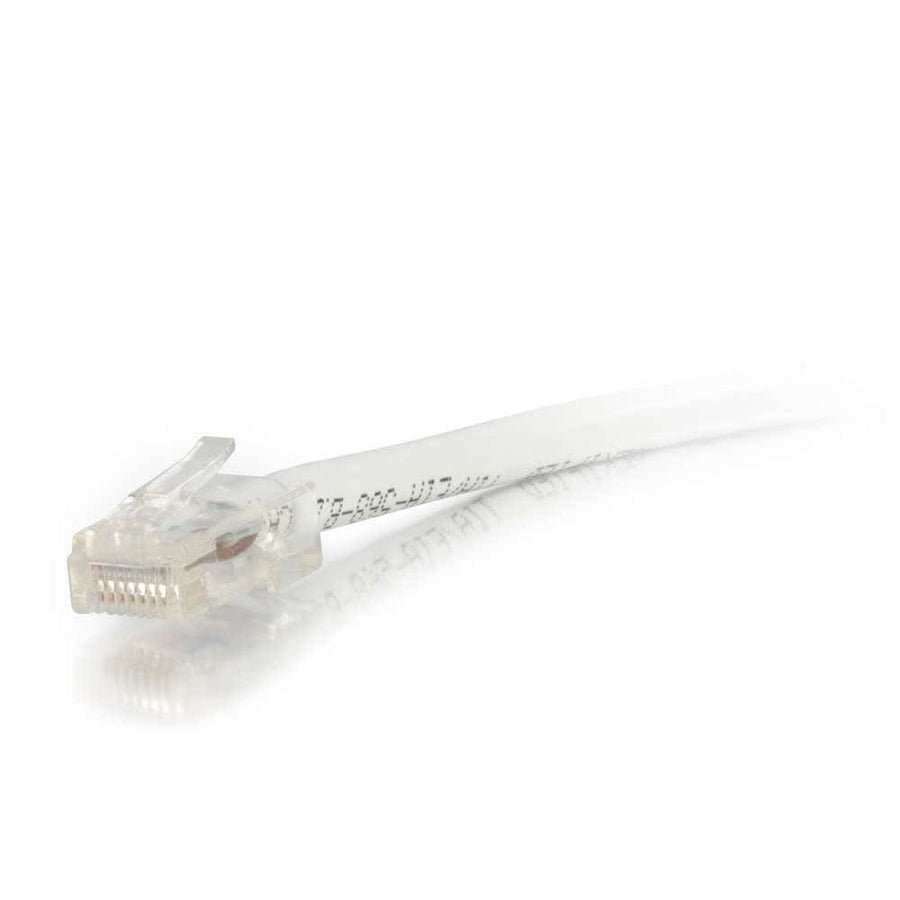

10ft (3m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White
10ft Cat6 UTP unshielded patch cable in white, featuring stranded copper conductors and RJ-45 male connectors
The C2G CG04241 is a 10ft (3.1 m) Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This white cable is engineered for fast Ethernet and Gigabit computer networks, meeting all Cat6 TIA/EIA standards. It is constructed with high-quality stranded copper conductors, which helps minimize Near-End Crosstalk (NEXT) levels. To maintain structural integrity and reduce impedance and structural return loss (SRL), each individual pair is bonded together to preserve twist-spacing up to the termination point. This specific model utilizes an RJ-45 male to RJ-45 male connector configuration and follows the T568B wiring scheme. The cable features a PVC jacket with a 0.24 in (6 mm) diameter and is rated for temperatures up to 75°C. This non-booted series is an ideal choice for high-performance networking environments where reliable connectivity is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042419 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04241?
The CG04241 uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
What type of shielding does this Cat6 cable have?
This is an unshielded (UTP) cable, meaning it does not have internal shielding.
What is the maximum operating temperature for this cable?
The cable is rated for temperatures up to 75°C.
Does the CG04241 include a boot on the connectors?
No, this is a non-booted patch cable, which results in a more compact connector profile.
What are the conductor materials used in this patch cable?
The CG04241 is constructed with stranded copper conductors.
