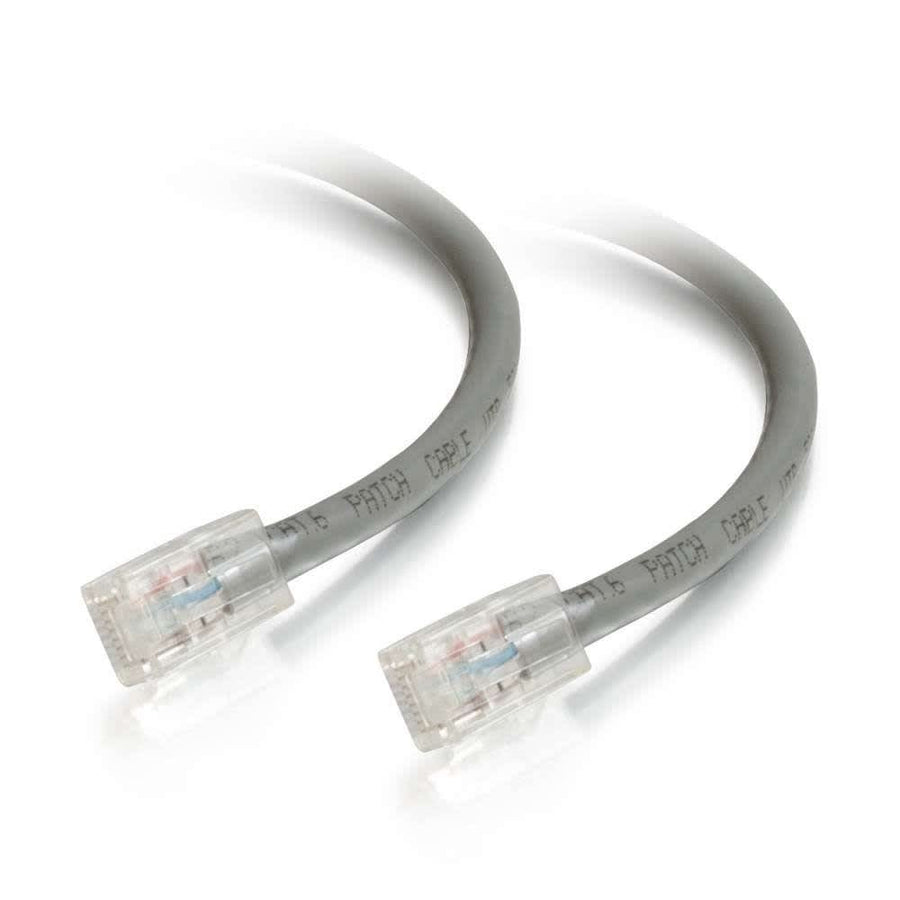

10ft (3m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
10ft Cat6 UTP patch cable with non-booted connectors and gray PVC jacket
The C2G CG04073 is a 10ft (3.1 m) Cat6 non-booted patch cable designed for high-bandwidth Ethernet, voice, data, and video distribution applications. This unshielded UTP cable is constructed with high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the line up to the termination point, which helps reduce impedance and structural return loss (SRL). This cable features a 0.24 in (6 mm) diameter and a PVC jacket rated for standard/non-rated environments. It is wired using the T568B scheme and is suitable for environments requiring a reliable connection for Gigabit computer networks. This gray cable is part of a larger series with multiple length and color options available for color-coded network installations. It is built to meet all Cat6 TIA/EIA standards, ensuring consistent performance for bandwidth-intensive network hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040736 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the wiring scheme for the C2G CG04073?
The CG04073 uses the T568B wiring scheme for all connections.
Will this cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks requiring high bandwidth.
Is this cable suitable for high-crosstalk environments?
The design utilizes bonded individual pairs to maintain twist-spacing, which helps minimize Near-End Crosstalk (NEXT).
What is the maximum operating temperature for this patch cable?
The cable is rated for a maximum temperature of 75°C.
What other accessories are compatible with Cat6 systems?
This cable is compatible with various components like the CG03831 1-Port Keystone Jack Surface Mount Box and the 24845CC6 Cat6 24-Port Rack Mount Patch Panel.
