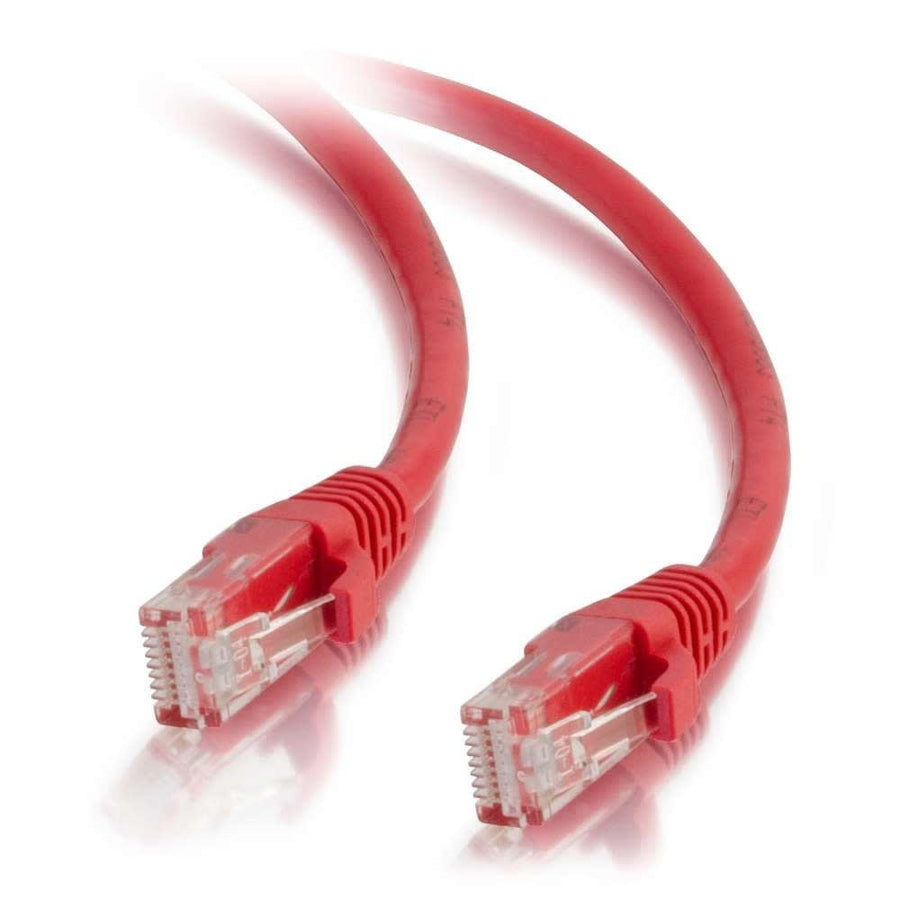

10ft (3m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Red
10ft red Cat5e snagless unshielded UTP Ethernet patch cable, 350 MHz bandwidth, with stranded copper conductors
The C2G CG15203 is a 10ft (3.1 m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for fast Ethernet networks. This red cable is engineered for bandwidth-intensive voice, data, or video distribution applications, meeting all Cat5e TIA/EIA standards. It features 24 AWG stranded copper conductors and provides 350 mHz of bandwidth while significantly reducing structural return loss (SRL) and impedance. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain precise twist-spacing right up to the termination point. The assembly uses standard RJ-45 male connectors with PVC snagless boots that protect the clips during frequent plugging and unplugging while providing extra strain relief. This UTP cable has a 0.21 in (5.3 mm) diameter and a dielectric strength of 500 MV/m. It is a reliable choice for installers requiring color-coded network identification in high-performance environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152033 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the length and color of this C2G patch cable?
The CG15203 is a 10 ft (3.1 m) cable in red, part of a series available in 10 different colors.
Is the CG15203 compatible with Cat5e keystone jacks?
Yes, this cable is compatible with various Cat5e components like the WP3475 series Quick Connect RJ45 Keystone Inserts and the WP3450 series RJ45 Keystone Connectors.
What type of shielding and termination does this cable use?
This is an unshielded (UTP) cable using a T568B wiring scheme with RJ-45 male connectors.
Does this cable support high-bandwidth video applications?
Yes, it is designed for bandwidth-intensive voice, data, or video distribution and supports up to 350 mHz.
What certifications does the CG15203 hold?
The cable is listed with CE, REACH, and RoHS certifications.
