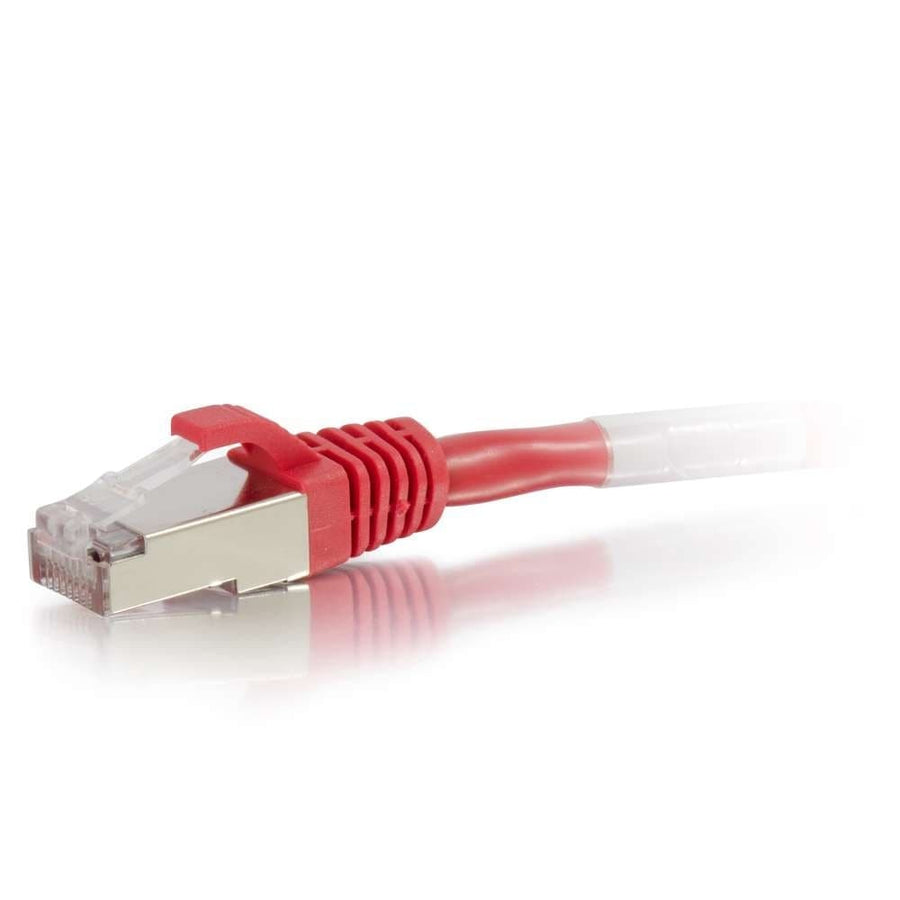

10ft (3m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Red
10ft Red Cat5e STP shielded patch cable with snagless RJ45 connectors for EMI/RFI protection
The C2G CG27257 is a 10ft (3.1 m) Cat5e shielded STP Ethernet network patch cable designed for connectivity in high-interference environments. This cable utilizes F/UTP shielding, featuring an overall cable foil shield and a drain wire to provide critical protection against EMI/RFI noise and electromagnetic interference. It is constructed with 24 AWG stranded copper conductors and HDPE insulation, meeting or exceeding industry standards for NEXT and return loss. The assembly is finished with PVC jacket material and features snagless, booted RJ45 connectors with 50 micron gold plating to ensure durable, reliable connections. This red cable is part of a larger series available in multiple lengths and colors to facilitate network color-coding. For maximum protection against EMI/RFI interference, this cable should be used in conjunction with a Cat5e shielded patch panel and Cat5e shielded keystone jacks to ensure complete end-to-end shielding throughout the installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120272571 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
How do I ensure full EMI/RFI protection for this cable?
For maximum protection, use this cable with Cat5e shielded patch panels and shielded keystone jacks to maintain shielding from end to end.
What is the wiring standard for the CG27257?
This patch cable is wired to the TSB 568B (AT+T 258A) standard.
Is this cable suitable for environments with high electromagnetic interference?
Yes, the F/UTP shielding and overall cable foil shield are designed specifically for making network connections in noisy EMI/RFI environments.
What are the operating temperature limits for this Cat5e cable?
The cable is rated for operating temperatures ranging from -4° - 176°F (-20° - 80°C).
What is the connector type on this red patch cable?
The CG27257 features snagless, booted RJ45 male connectors with 50 micron gold plating.
