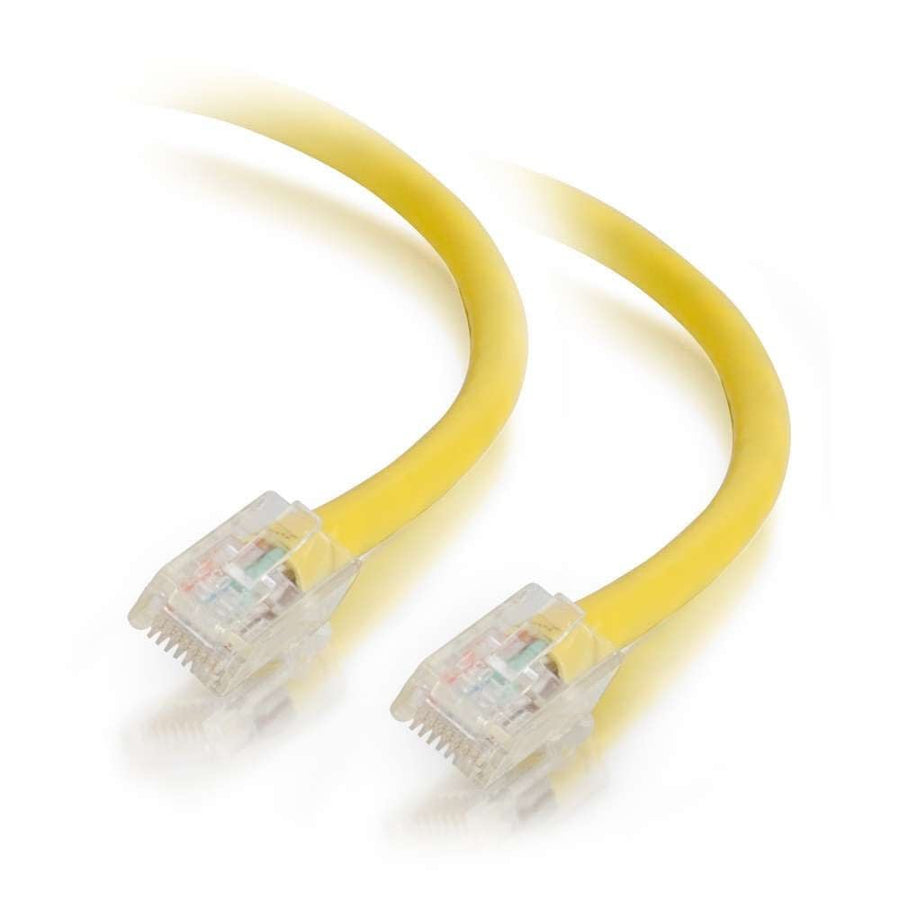

10ft (3m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
Yellow 10ft Cat5e UTP patch cable, unshielded stranded copper construction for network adapters and switches
The C2G CG22694 is a 10 ft (3.1 m) Cat5e unshielded UTP patch cable designed for high-bandwidth network environments. This cable is engineered for applications requiring efficient voice, data, or video distribution, meeting all TIA/EIA Cat5e standards. It is constructed with high-quality stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing throughout the entire length of the line, which helps reduce impedance and structural return loss (SRL). This yellow cable features non-booted RJ-45 male connectors on both ends and uses a standard PVC jacket. It is designed for use with network adapters, hubs, switches, and routers. This SKU is part of a broader series of Cat5e non-booted patch cables available in multiple colors and lengths up to 150 ft to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the length and color of the CG22694 patch cable?
The CG22694 is a 10 ft (3.1 m) cable in a yellow jacket.
What type of connectors does this C2G cable use?
This cable is equipped with two RJ-45 male connectors in a non-booted configuration.
Will this Cat5e cable work for high-bandwidth video distribution?
Yes, it is designed for bandwidth-intensive voice, data, or video distribution applications and meets Cat5e TIA/EIA standards.
Can I use this cable to color-code my network installation?
Yes, the yellow jacket is specifically intended to help color-code network installations alongside other available colors in this series.
What is the conductor construction of this patch cable?
The cable uses stranded copper conductors with a 24 AWG wire gauge.
