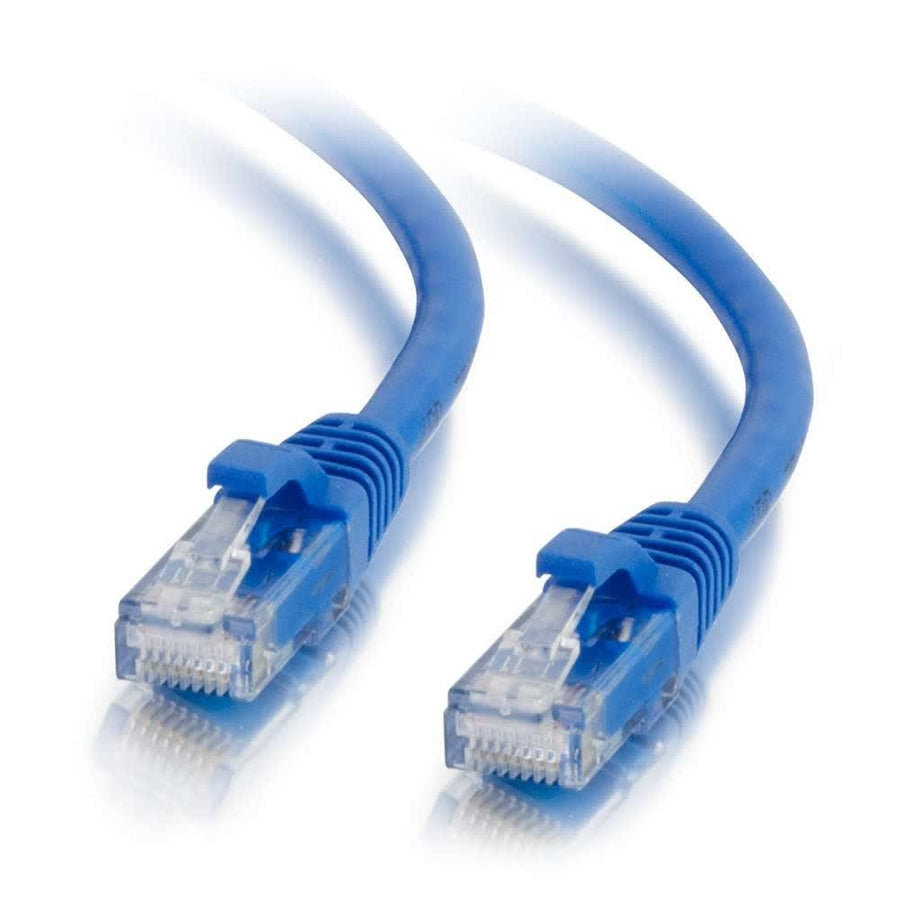

100ft (30.5m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
100ft blue Cat6a snagless UTP patch cable, 26AWG stranded copper, designed for 10GBase-T high-density environments
The C2G CG50879 is a 100ft (30.5 m) Cat6a snagless UTP Ethernet patch cable designed to facilitate 10 Gigabit data transmission. This cable is engineered for 10GBase-T ports and equipment, including network adapters, switches, routers, hubs, and patch panels. Unlike standard Cat6 cabling which may only support 10 Gigabit Ethernet over limited distances, this Cat6a solution supports connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance in high-density switch applications where alien crosstalk is a concern. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. Each cable includes an individual length label for easy identification during installation and features a snagless hood to protect the RJ-45 connectors. The blue color allows for easy identification within complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.57 lbs (1.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508793 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, this cable supports 10GBase-T transmission for up to 100 meters, meeting ANSI/TIA 568 C.2 Cat6a channel requirements.
What is the difference between this and a standard Cat6 cable?
While standard Cat6 cabling may only support 10 Gigabit Ethernet over limited distances, this Cat6a cable is designed to maintain 10 Gigabit performance for the full 100-meter distance.
Is this cable suitable for high-density patch panels?
Yes, the snagless hood design is specifically intended for use in high-density switch and patch panel applications to prevent connector damage.
What are the physical specifications for the CG50879?
This blue cable features a 0.24 in (6 mm) diameter and is constructed with 26AWG stranded copper and a PVC jacket.
What accessories are compatible with this cable type?
This cable is compatible with various Cat6a components, including the WP246A 24-Port Rack Mount Patch Panel and the WP346ABK Cat6a Quick Connect RJ45 Keystone Insert in Black.
