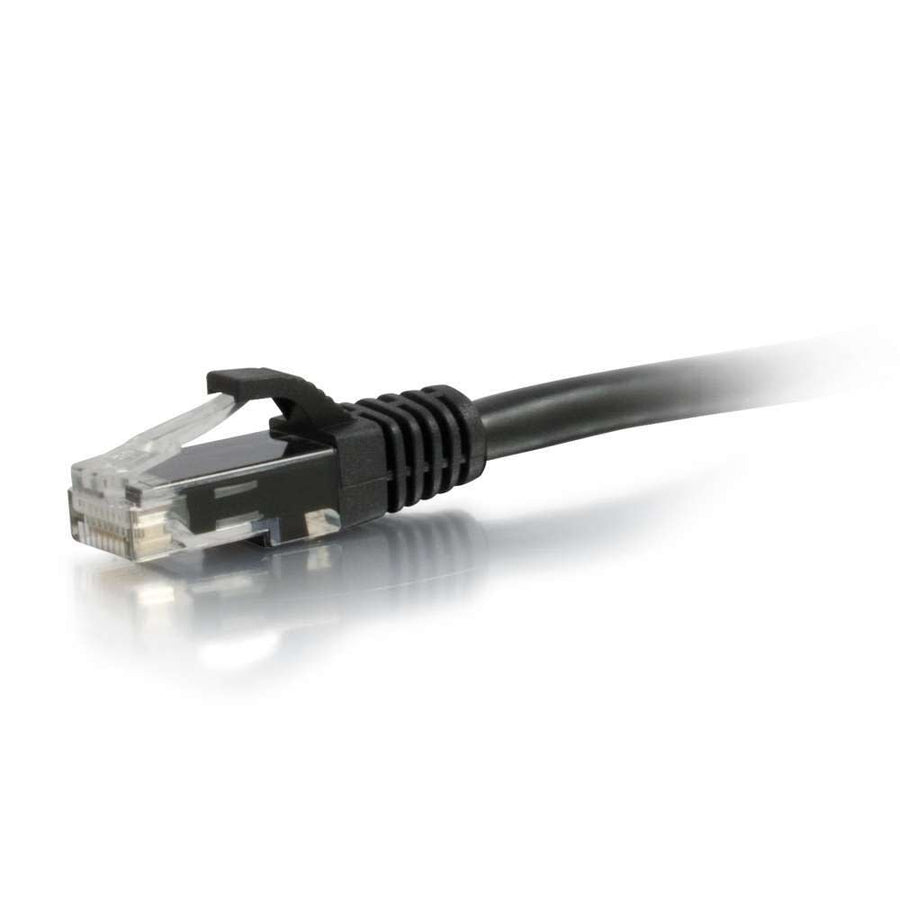

100ft (30.5m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
100ft Cat6a Snagless UTP patch cable, 26AWG bare copper, supporting 10 Gigabit data transmission
The C2G CG50883 is a 100ft (30.5m) Cat6a Snagless UTP Ethernet Network Patch Cable designed to facilitate 10 Gigabit data transmission. This cable is suitable for use with 10GBase-T equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring high performance for 10 Gigabit Ethernet over 4-pair copper cabling. The construction features 26AWG (7/0.16) bare copper stranded conductors with HDPE (High-density Polyethylene) insulation and a PVC jacket. To improve alien crosstalk performance, the cable is designed for high-density switch applications. The snagless, booted RJ-45 male connectors include a PVC hood to protect the release tabs, and individual length labels are included on each cable for simplified identification during installation. This black UTP cable supports temperature ratings up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.48 lbs (1.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508830 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What equipment is the CG50883 compatible with?
This cable is designed for 10GBase-T ports and equipment like switches, routers, hubs, DSL/cable modems, and network adapters.
Is the CG50883 suitable for high-density patch panels?
Yes, the snagless boot design is specifically intended to ease installation in high-density switch and patch panel applications.
What is the wiring scheme used for this Cat6a cable?
The CG50883 patch cable uses the 568B wiring scheme.
Does the CG50883 support 10 Gigabit speeds?
Yes, it is a Cat6a cable designed to enable 10 Gigabit data transmission over its 100 ft (30.5 m) length.
What is the conductor material for the CG50883?
The cable utilizes 26AWG bare copper stranded conductors with HDPE insulation.
