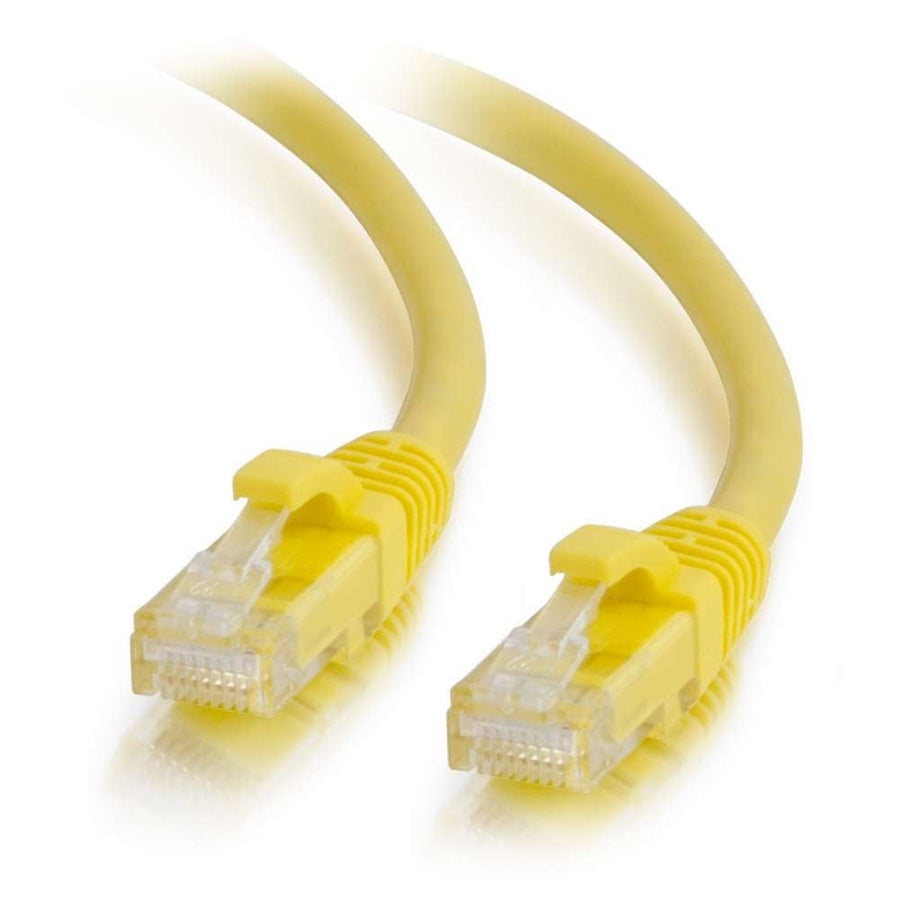

100ft (30.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
100ft Cat6 Unshielded UTP Ethernet patch cable in yellow with snagless boots for strain relief
The C2G CG27197 is a 100ft (30.5 m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth applications. This yellow cable is engineered for fast Ethernet and Gigabit computer networks, specifically supporting bandwidth-intensive voice, data, or video distribution. It meets all Cat6 TIA/EIA standards, providing a reliable connection that drastically reduces impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing throughout the entire 100ft line, which helps minimize Near-End Crosstalk (NEXT) levels. The cable features 24 AWG stranded copper conductors and uses a T568B wiring scheme. To simplify installation and prevent damage, the RJ-45 male connectors are protected by molded, snagless PVC boots that provide extra strain relief and prevent the clips from snagging during routing. This snagless design is part of the Cat6 Snagless Patch Cable Series, which is available in 10 different colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.72 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271970 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this CG27197 cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for Gigabit computer networks and bandwidth-intensive video or data distribution applications.
What is the maximum length available in this series?
The Cat6 Snagless Patch Cable Series is available in lengths up to 150ft.
Is the CG27197 cable shielded or unshielded?
This is an unshielded (UTP) cable utilizing stranded copper conductors and a PVC jacket.
What is the wiring standard for this patch cable?
This 100ft cable follows the T568B wiring scheme and uses RJ-45 male connectors.
Can I use this to color-code my network installation?
Yes, this specific SKU is yellow, and the series is available in 10 different colors to facilitate network management.
