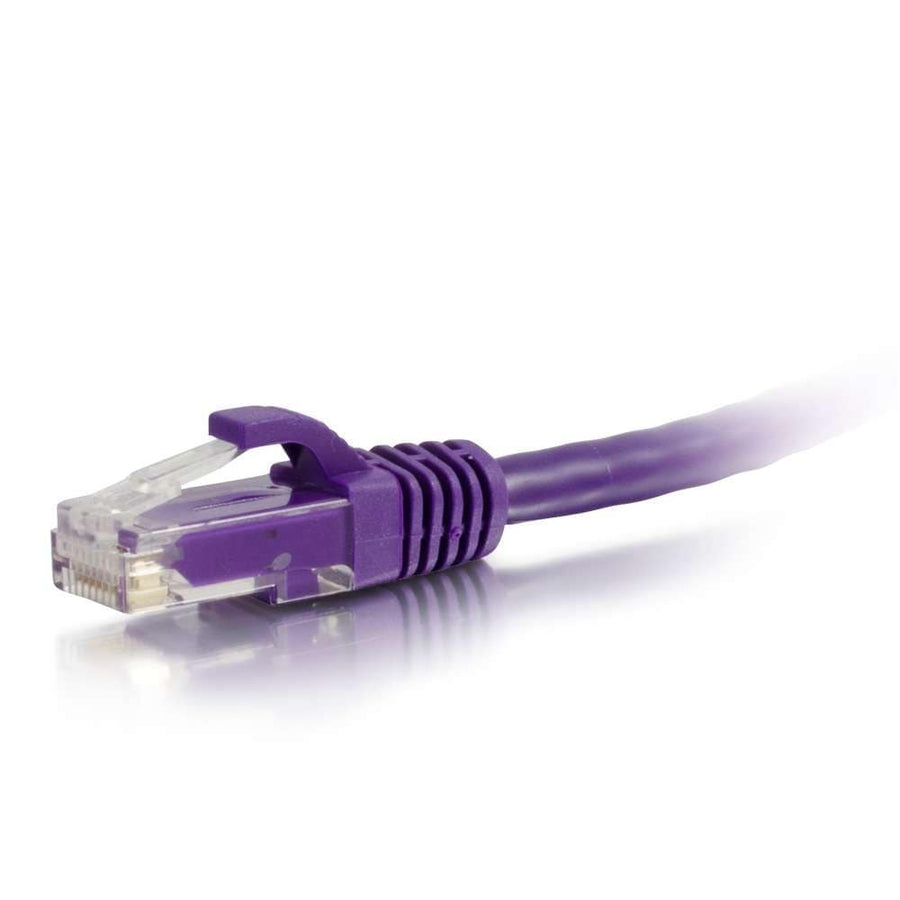

100ft (30.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
100ft Cat6 Unshielded UTP Ethernet patch cable in purple, featuring a snagless boot for clip protection and high-quality stranded copper conductors
The C2G CG27807 is a 100ft (30.5m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth applications including voice, data, and video distribution. This cable is constructed with high-quality copper stranded conductors and follows the T568B wiring scheme to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing from the termination point to the end of the line, which helps to reduce impedance and structural return loss (SRL). The purple jacket is made of PVC and is non-rated. For ease of installation, the cable features a snagless, molded PVC boot that protects the RJ-45 clips from damage during plugging and unplugging while providing extra strain relief. This Cat6 cable is rated for Category 6 performance applications and carries CE, REACH, and RoHS certifications. It is part of a series available in 10 different colors to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.64 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278078 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work with my existing network hardware?
Yes, this Cat6 Unshielded UTP cable is designed for fast Ethernet and Gigabit computer networks, making it suitable for high-bandwidth voice, data, or video distribution.
What is the difference between this and other C2G patch cables?
The CG27807 is part of a series available in 10 different colors and lengths up to 150ft to allow for easy color-coding within your installation.
What do I need to buy to complete my installation?
This cable is compatible with several components such as the Cat6 24-Port Rack Mount Patch Panel (24845CC6) or the Cat6 48-Port Rack Mount Patch Panel (48845CC6).
Does the snagless design offer any specific benefit?
The molded snagless boot protects the RJ-45 clips from being snapped off during installation and provides additional strain relief for the connection.
What is the conductor material and gauge for this cable?
This cable uses stranded copper conductors with a 24 AWG wire gauge and a cable diameter of 0.24 in (6.2 mm).
