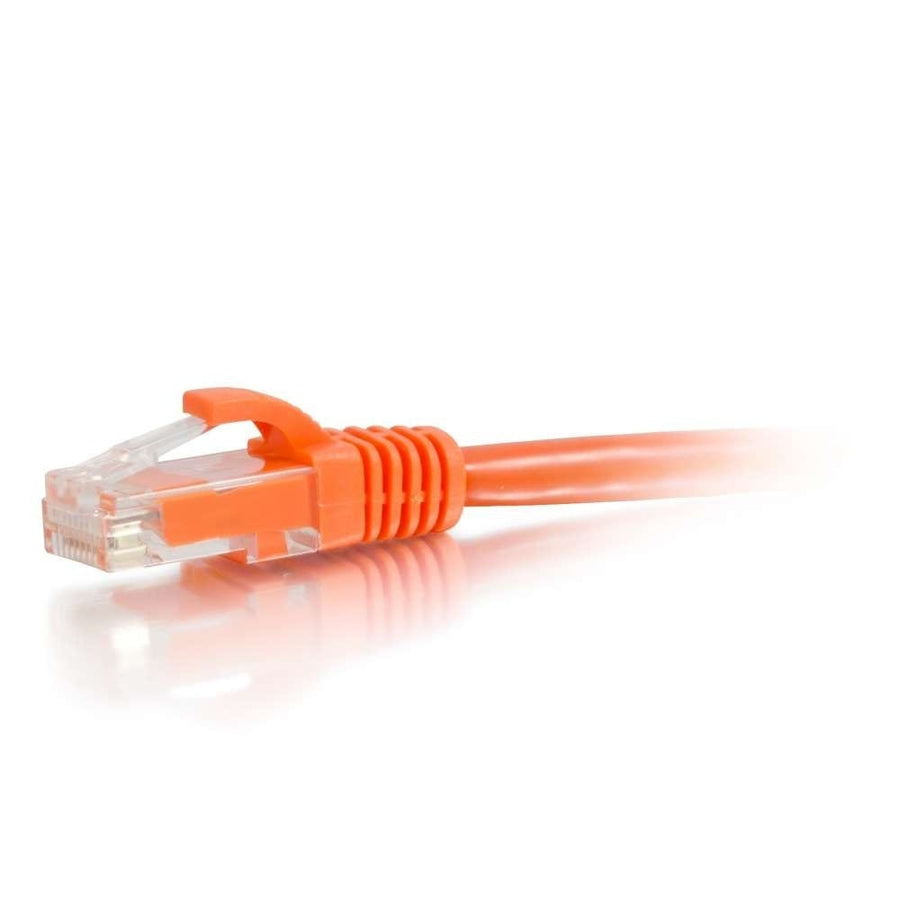

100ft (30.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
100ft Cat6 UTP patch cable in orange with snagless boots and stranded copper conductors
The C2G CG27817 is a 100ft (30.5m) Cat6 Unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This orange cable utilizes 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing throughout the entire line length, right up to the termination point, which drastically reduces impedance and structural return loss (SRL). The cable features a 0.24 in (6.2 mm) diameter and is constructed with a PVC jacket and PVC connector hoods. For installation ease, the RJ-45 male connectors are protected by molded, snagless boots that prevent the clips from catching on other cables and provide additional strain relief. This T568B wiring scheme cable is built to meet all Cat6 TIA/EIA standards for reliable network performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.72 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278177 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum length available for this C2G Cat6 series?
While this specific SKU is 100 ft (30.5 m), the Cat6 Snagless Patch Cable series is available in lengths up to 150 ft.
What wiring standard does the CG27817 follow?
This orange patch cable uses the T568B wiring scheme for all connections.
Does this cable include any special shielding?
No, this is an Unshielded Twisted Pair (UTP) cable, which helps reduce impedance and structural return loss.
What accessories are compatible with Cat6 components?
This cable is compatible with various Cat6 hardware, including the 48-Port Rack Mount Patch Panel (48845CC6) and the 24-Port Rack Mount Patch Panel (24845CC6).
Is the CG27817 compliant with environmental standards?
The cable is listed with RoHS, REACH, and CE certifications.
