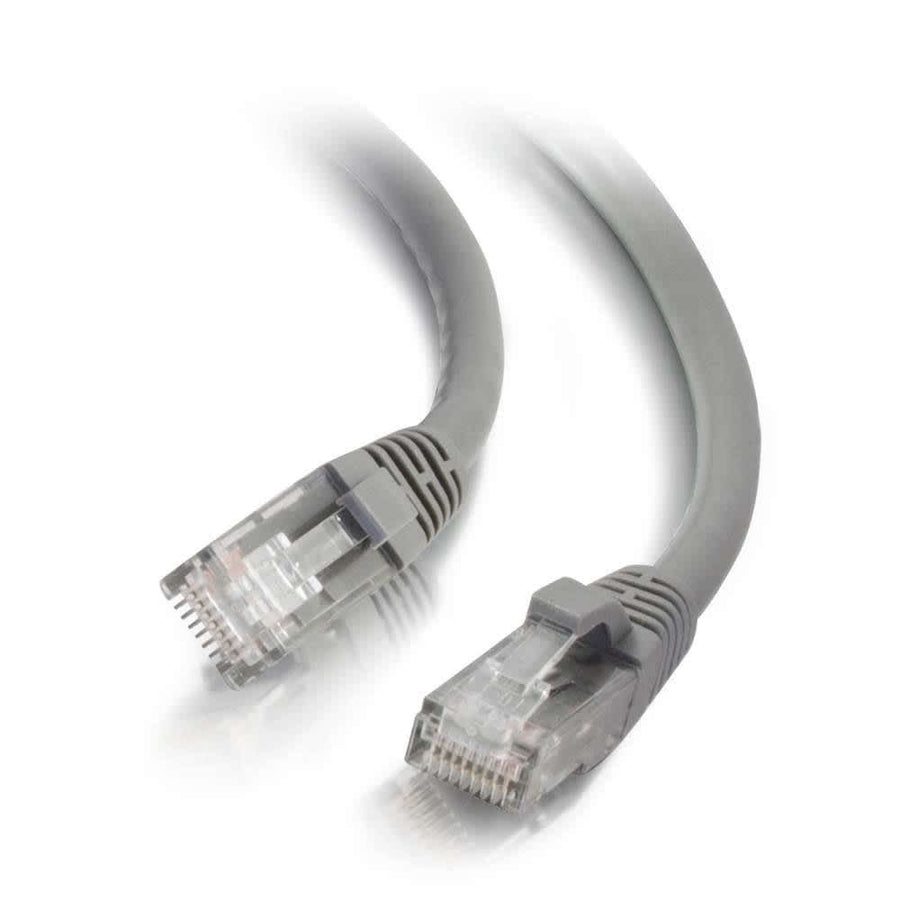

100ft (30.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
100ft Cat6 Snagless UTP Ethernet patch cable, unshielded with gray PVC jacket and snagless boots
The C2G CG27137 is a 100ft (30.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, and video distribution applications. This cable meets all Cat6 TIA/EIA standards, providing performance for fast Ethernet and Gigabit computer networks. It is constructed with high-quality stranded copper conductors that help minimize Near-End Crosstalk (NEXT) levels. To reduce impedance and structural return loss (SRL), each individual pair is bonded together to maintain consistent twist-spacing throughout the 100ft (30.5m) line, right up to the termination point. This specific gray model features 24 AWG wire and a 0.24 in (6.2 mm) cable diameter. The molded snagless boots protect the RJ-45 male clips from damage during installation and provide added strain relief, making it a reliable choice for frequent plug/unplug cycles in high-density network environments. This unshielded (UTP) cable utilizes a PVC jacket and PVC connector hoods.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2 lbs (0.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271376 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the maximum length available for this C2G Cat6 series?
This specific SKU is 100ft (30.5m), but the series is available in lengths up to 150ft.
Will this cable work with my existing patch panel?
Yes, this cable is compatible with several C2G components, including the Cat6 48-Port Rack Mount Patch Panel (48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (24845CC6).
What kind of shielding does the CG27137 use?
The CG27137 is an Unshielded Twisted Pair (UTP) cable, which is a standard unshielded design.
What is the wiring standard for this patch cable?
This cable uses the T568B wiring scheme for all RJ-45 male connections.
Can I use this cable in a color-coded network environment?
Yes, while this SKU is Gray, the series is available in 10 different colors to facilitate network organization.
