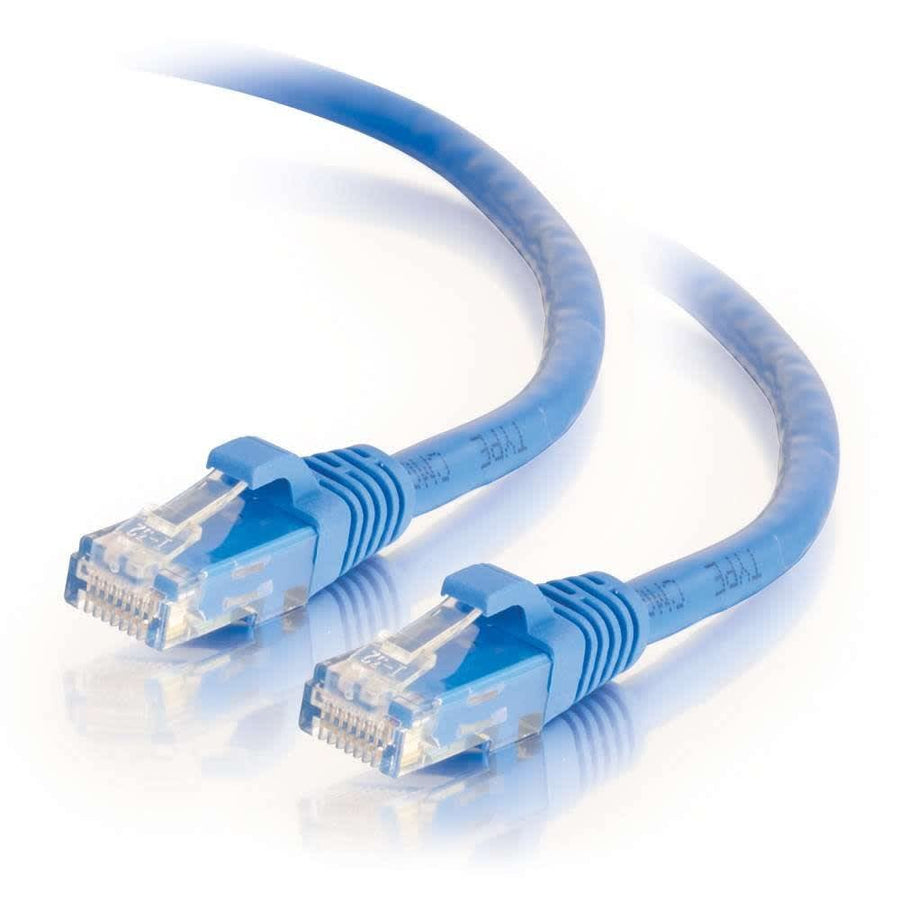

100ft (30.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
100ft Blue Cat6 unshielded UTP patch cable with snagless boots and 24 AWG stranded copper conductors
The C2G CG27147 is a 100ft (30.5 m) Cat6 snagless patch cable designed for high-bandwidth voice, data, and video distribution in fast Ethernet and Gigabit computer networks. This unshielded (UTP) cable features 24 AWG stranded copper conductors and is constructed to meet all Cat6 TIA/EIA standards. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain twist-spacing throughout the line up to the termination point. This design helps reduce both impedance and structural return loss (SRL). For ease of installation, the cable features molded, snagless boots made of PVC that protect the RJ-45 clips from damage during plugging and unplugging while providing additional strain relief. The blue jacket and connector housing facilitate easy color-coding within complex network environments. This cable is a reliable solution for professional installers managing high-density cabling in data centers or enterprise office buildings.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.59 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271475 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work in my Gigabit network?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit computer networks, meeting all Cat6 TIA/EIA standards for high-bandwidth applications.
What is the difference between the snagless boot and a standard boot?
The snagless boot on the CG27147 protects the RJ-45 clips from snapping off during installation and provides extra strain relief for the cable.
What specific termination standard does this cable use?
This patch cable uses the T568B wiring scheme with standard RJ-45 male connectors on both ends.
Is this cable shielded or unshielded?
This is an unshielded (UTP) cable with stranded copper conductors designed to reduce impedance and structural return loss.
Does this cable come with a warranty?
Yes, this C2G patch cable is covered by a lifetime warranty.
