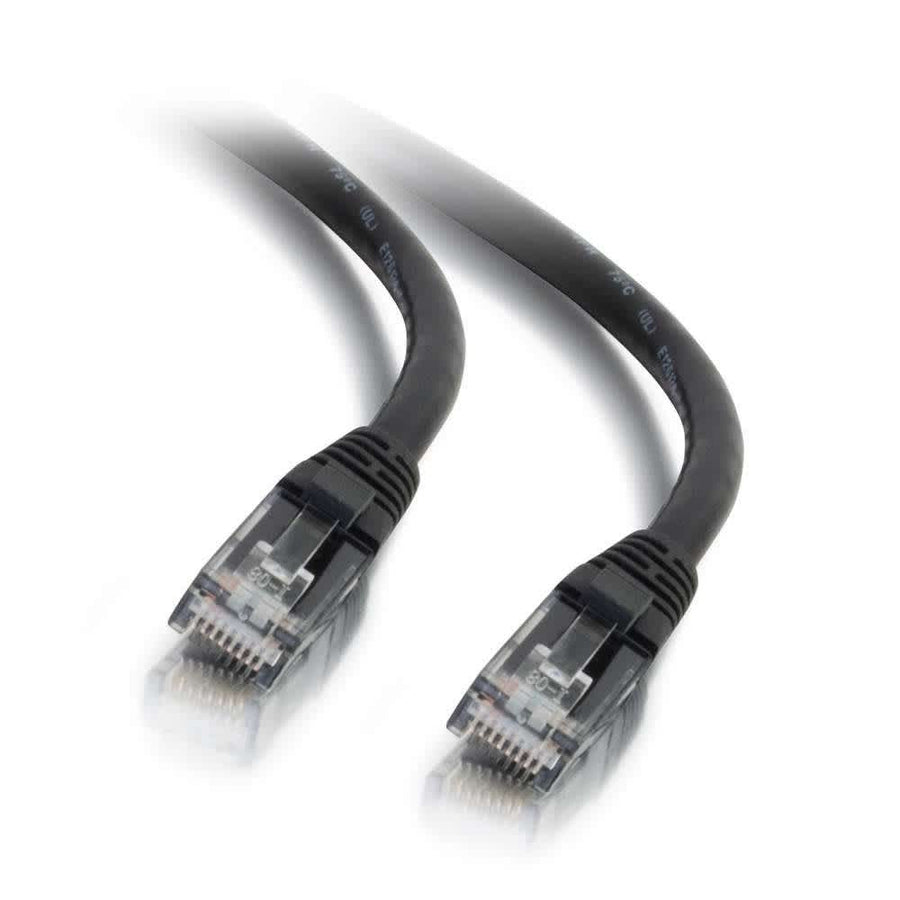

100ft (30.5m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
100ft Cat6 Unshielded UTP patch cable, snagless design, black PVC jacket, 24 AWG stranded copper conductors
The C2G CG27157 is a 100ft (30.5 m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all TIA/EIA Cat6 standards, helping to reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing throughout the line up to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. The construction utilizes high-quality 24 AWG stranded copper conductors and a PVC jacket. To protect the connection during installation, the molded snagless boots provide extra strain relief and prevent the RJ-45 clips from snapping off during plugging or unplugging. This black cable is an unshielded (UTP) solution utilizing a T568B wiring scheme and features both ends as RJ-45 male connectors. It is a reliable choice for high-speed Gigabit computer networks requiring consistent performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 100 ft (30.5 m) |
| Shield Type | UTP |
| Shipping Weight | 2.69 lbs (1.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271574 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, the CG27157 is rated for Cat6 performance, making it suitable for Gigabit computer networks and bandwidth-intensive data or video applications.
What is the wiring scheme used for the CG27157 patch cable?
This 100ft patch cable utilizes the T568B wiring scheme with RJ-45 male connectors on both ends.
What compatible accessories are available for this Cat6 cable?
This cable is compatible with various rack mount patch panels, such as the 48-Port 48845CC6 or the 24-Port 24845CC6, and network interface modules like the AC1068.
How does the snagless boot design benefit installation?
The molded snagless boot protects the RJ-45 connector clips from damage during frequent plugging and unplugging, providing additional strain relief.
What certifications does this cable hold?
The CG27157 is CE, REACH, and RoHS compliant.
