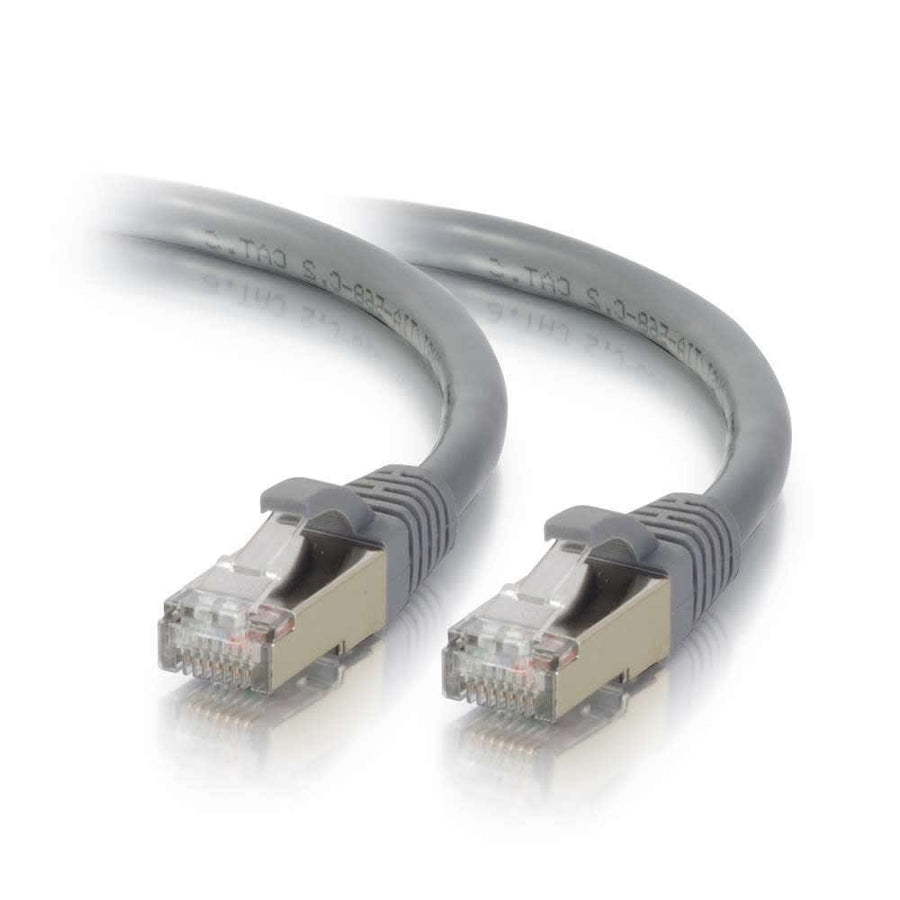

100ft (30.5m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Gray
100ft Cat5e shielded STP patch cable, 24 AWG stranded copper, with snagless boots for EMI/RFI protection
The C2G CG28706 is a 100ft (30.5m) Cat5e shielded STP Ethernet network patch cable designed for use in environments prone to electromagnetic interference (EMI) or radio frequency interference (RFI). This F/UTP cable utilizes an overall cable foil shield and a drain wire to provide critical protection against noise. It is constructed with 4-pair 24 AWG stranded copper conductors and features 50 micron gold-plated RJ45 connectors. The cable is built with PVC insulation and a PVC jacket, featuring a 0.24 in (6 mm) diameter. For durability and ease of use in high-density installs, the connectors include snagless, booted hoods made of PVC. This cable is wired to the TSB 568B (AT+T 258A) standard and meets or exceeds industry standards for NEXT and return loss. For end-to-end shielding protection, this cable should be paired with a C2G Cat5e shielded patch panel and Cat5e shielded keystone jacks.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 2.7 lbs (1.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120287063 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
What is the purpose of the shielding on the CG28706 cable?
The F/UTP shielding provides an overall foil shield and drain wire to protect your network from EMI/RFI noise and electromagnetic interference.
What do I need to buy to achieve full end-to-end shielding?
To ensure maximum protection against EMI/RFI, you should use this cable with a Cat5e shielded patch panel and Cat5e shielded keystone jacks.
Is the CG28706 cable suitable for high-density environments?
Yes, the cable features snagless, booted RJ45 connectors which provide extra strain relief and protect the jack during installation.
What are the technical wiring standards for this patch cable?
This Cat5e cable is wired to the TSB 568B (AT+T 258A) standard and features 24 AWG stranded copper conductors.
What certifications does this C2G cable carry?
This cable is TIA/EIA compliant and carries CE, RoHS, and REACH certifications.
