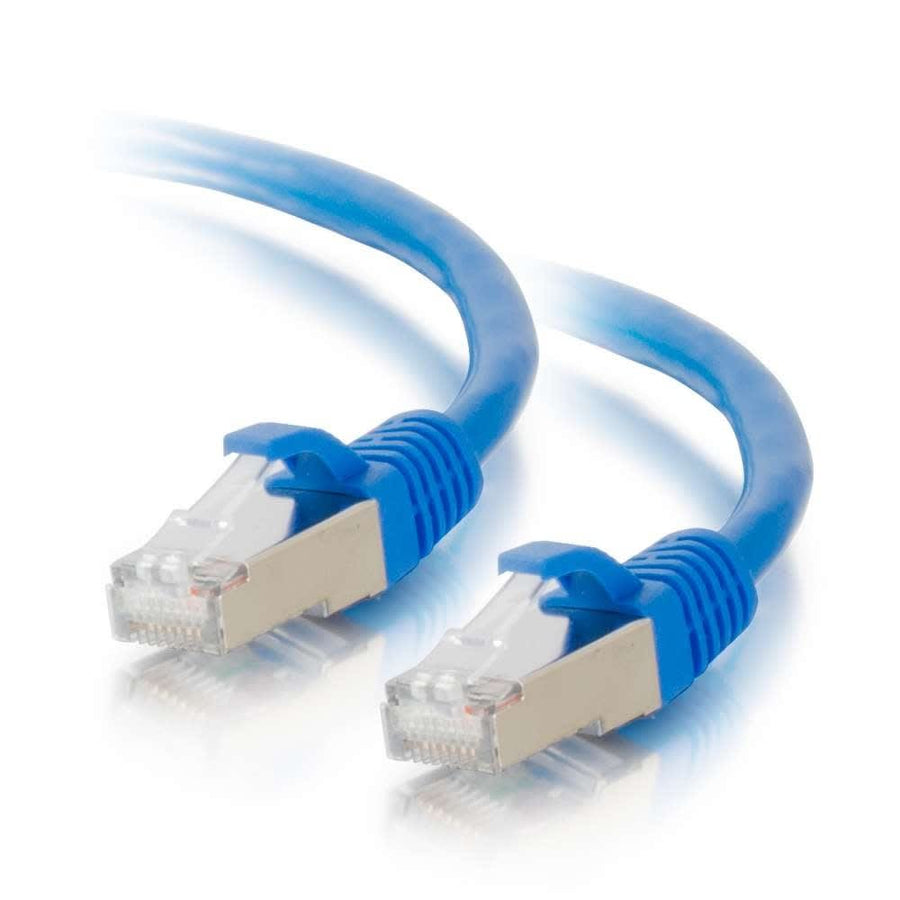

100ft (30.5m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Blue
100ft Cat5e shielded STP Ethernet patch cable with snagless boots for EMI/RFI protection in blue
The C2G CG28707 is a 100ft (30.5m) Cat5e shielded STP Ethernet patch cable designed for network connectivity in environments with high levels of EMI/RFI noise. This F/UTP cable features an overall cable foil shield and a drain wire to provide robust protection against electromagnetic interference. It is constructed with 24 AWG stranded copper conductors and uses HDPE insulation for reliable signal integrity. The cable features 50 micron gold-plated RJ45 connectors with a snagless, booted design to provide extra strain relief and prevent accidental disconnection. This cable is wired to the TSB 568B (AT+T 258A) standard and is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C). To ensure maximum protection against interference in your installation, use this cable in conjunction with Cat5e shielded patch panels and Cat5e shielded keystone jacks for complete end-to-end shielding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 2.53 lbs (1.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120287070 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
Will this cable work in high-interference environments?
Yes, the F/UTP shielding and overall cable foil with a drain wire are designed specifically for protection in noisy EMI/RFI environments.
What is required for complete end-to-end shielding?
For maximum protection, you should use this cable with Cat5e shielded patch panels and Cat5e shielded keystone jacks.
What is the wiring standard for the CG28707?
This patch cable is wired to the TSB 568B (AT+T 258A) standard.
What is the operating temperature range for this cable?
The cable is rated for operating temperatures from -4°F (-20°C) to 176°F (80°C).
What type of RJ45 connectors are used?
The cable uses shielded, 50 micron gold-plated RJ45 connectors with a snagless boot design.
