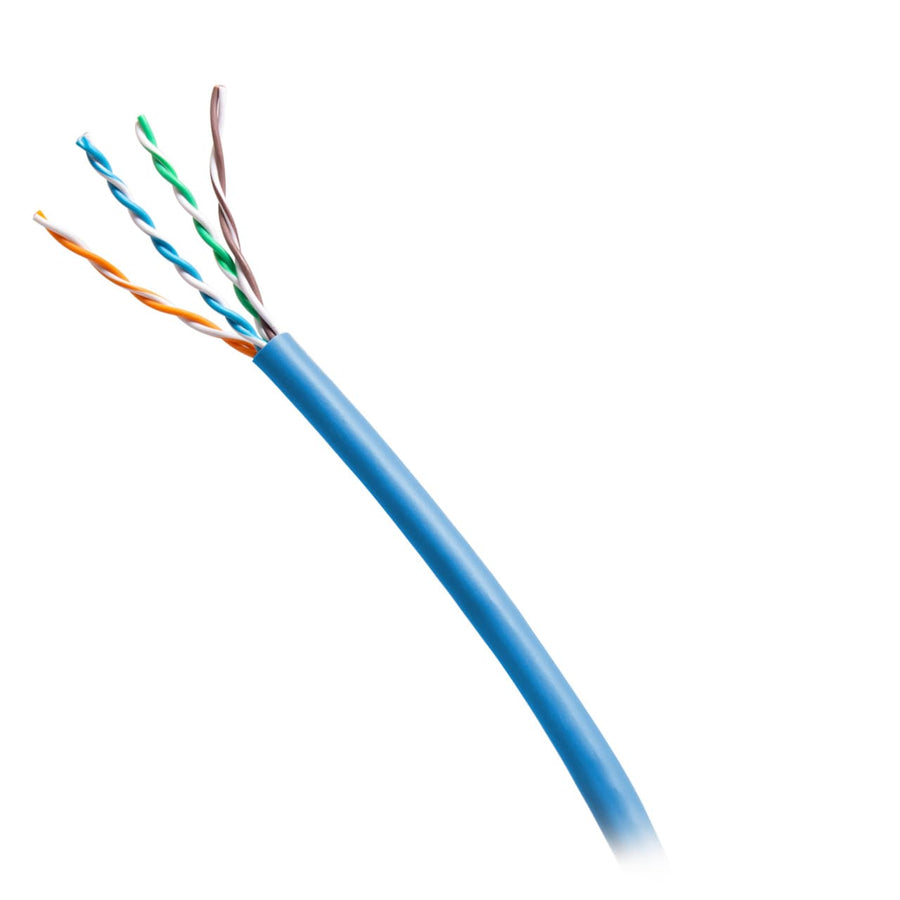

1000ft (304.8m) TAA-Compliant Cat6a Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Riser CMR-Rated - Blue
1000ft spool of Cat6a UTP bulk cable, CMR-rated for riser applications, featuring solid copper conductors in blue
The C2G56048 is a 1000ft (304.8 m) spool of Cat6a bulk Unshielded Twisted Pair (UTP) Ethernet network cable. Designed for vertical riser applications, this cable features a CMR-rated FRPVC flame-retardant jacket. It utilizes 23 AWG solid copper conductors to ensure reliable high-speed data transmission for LAN installations. This TAA-compliant cable is constructed with polyolefin insulation and is designed to operate in temperatures ranging from -4°F to 140°F (-20°C to 60°C). With a cable diameter of 0.28 in (7.2 mm) and a minimum bend radius of 1.13 in (28.8 mm), this bulk Cat6a cable provides the necessary infrastructure for professional network deployments. It is fully compliant with ANSI/TIA-568.2-D, ISO/IEC 11801-1, and IEC 61156-5 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.13 in (28.8 mm) |
| Cable Diameter | 0.28 in (7.2 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 37.7 lbs (17.1 kg) |
| Shipping Weight | 37.75 lbs (17.1 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | PO (Polyolefin) |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560487 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | FRPVC (Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
Is this Cat6a cable rated for in-wall or plenum use?
This is a CMR-rated cable intended for vertical riser applications. For plenum spaces, you would require a CMP-rated variant.
What accessories are needed to terminate this bulk cable?
This is bare wire bulk cable. To complete the installation, you will need RJ45 keystone inserts, such as the WP346ABE Blue keystone, and a faceplate or surface mount box like the WP3504WH.
Does this cable meet TAA compliance for government contracts?
Yes, the C2G56048 is TAA compliant and is UL listed, making it suitable for various regulated environments.
What is the maximum operating temperature for this cable?
This cable is rated for a maximum operating temperature of 140°F (60°C).
Can I use this cable in environments with high EMI?
This is an unshielded (UTP) cable. For environments with high electromagnetic interference potential, C2G offers shielded F/UTP options.
