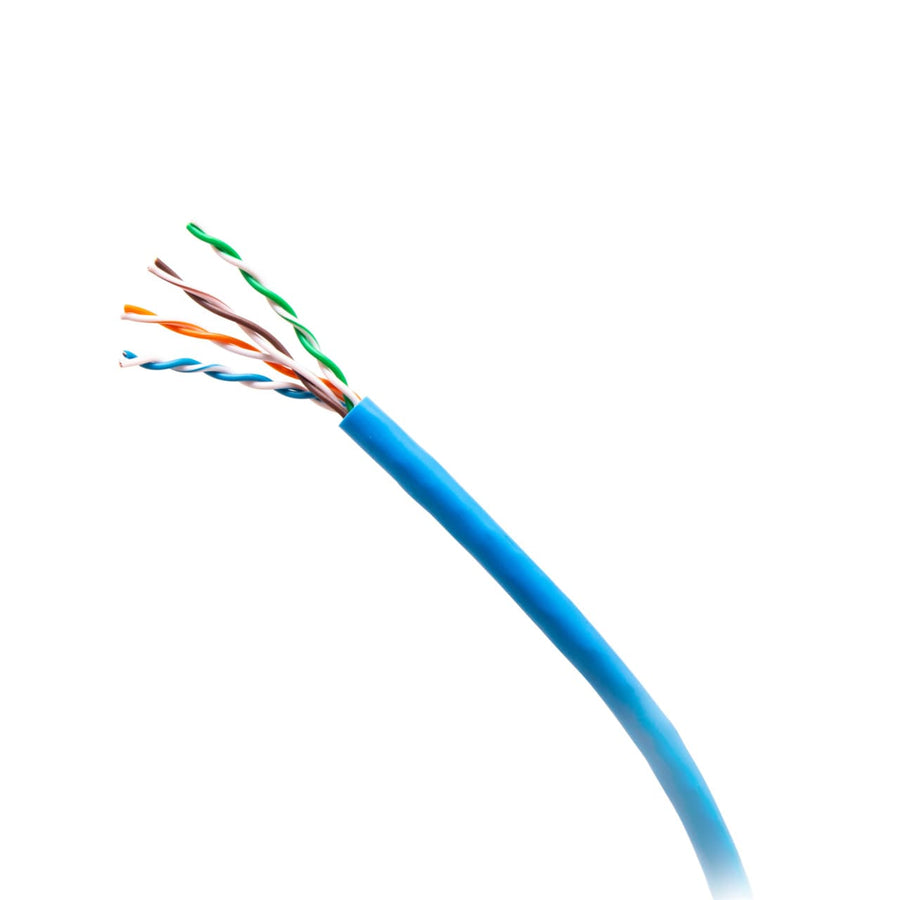

1000ft (304.8m) TAA-Compliant Cat6a Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Plenum CMP-Rated - Blue
1000ft plenum-rated Cat6a UTP bulk cable with blue LSFRPVC jacket and 23 AWG solid copper conductors
The C2G56051 is a 1000ft (304.8m) spool of Cat6a Unshielded Twisted Pair (UTP) bulk Ethernet cable designed for high-performance network installations. This cable features solid copper conductors with a 23 AWG wire gauge, ensuring reliable signal transmission for Cat6a performance applications. It is specifically engineered for use in plenum spaces, carrying a CMP jacket rating and constructed with Low Smoke Flame Retardant Polyvinyl Chloride (LSFRPVC) insulation material. The cable is TAA compliant and UL Listed, making it suitable for government and commercial projects requiring specific regulatory adherence. This blue-jacketed cable operates within a temperature range of -4°F to 140°F (-20°C to 60°C) and maintains a cable diameter of 0.26 in (6.7 mm) with a minimum bend radius of 1.06 in (26.8 mm). It is built to ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards, providing a robust solution for backbone or horizontal cabling in air-handling environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.06 in (26.8 mm) |
| Cable Diameter | 0.26 in (6.7 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 37.6 lbs (17.1 kg) |
| Shipping Weight | 37.9 lbs (17.2 kg) |
All other specifications 21
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560517 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
Is the C2G56051 suitable for plenum air-handling spaces?
Yes, this cable is CMP rated and features a plenum-rated jacket designed for use in plenum spaces.
What is the conductor type for this C2G56051 bulk cable?
The C2G56051 uses 23 AWG solid copper conductors for consistent Category 6a performance.
What accessories are required to terminate this bulk cable?
To complete the installation, you will need keystone inserts like the WP346ABE (Blue) or WP346ABK (Black), or a patch panel such as the WP246A.
Is this Cat6a cable TAA compliant?
Yes, the C2G56051 is TAA compliant and is UL Listed for professional network deployments.
What is the jacket material and color for this SKU?
This SKU features a blue LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) jacket.
