1000ft (304.8m) TAA-Compliant Cat6a Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Plenum CMP-Rated - Black
1000ft spool of Cat6a UTP bulk cable, CMP-rated plenum jacket, 23 AWG solid copper conductor, TAA-compliant

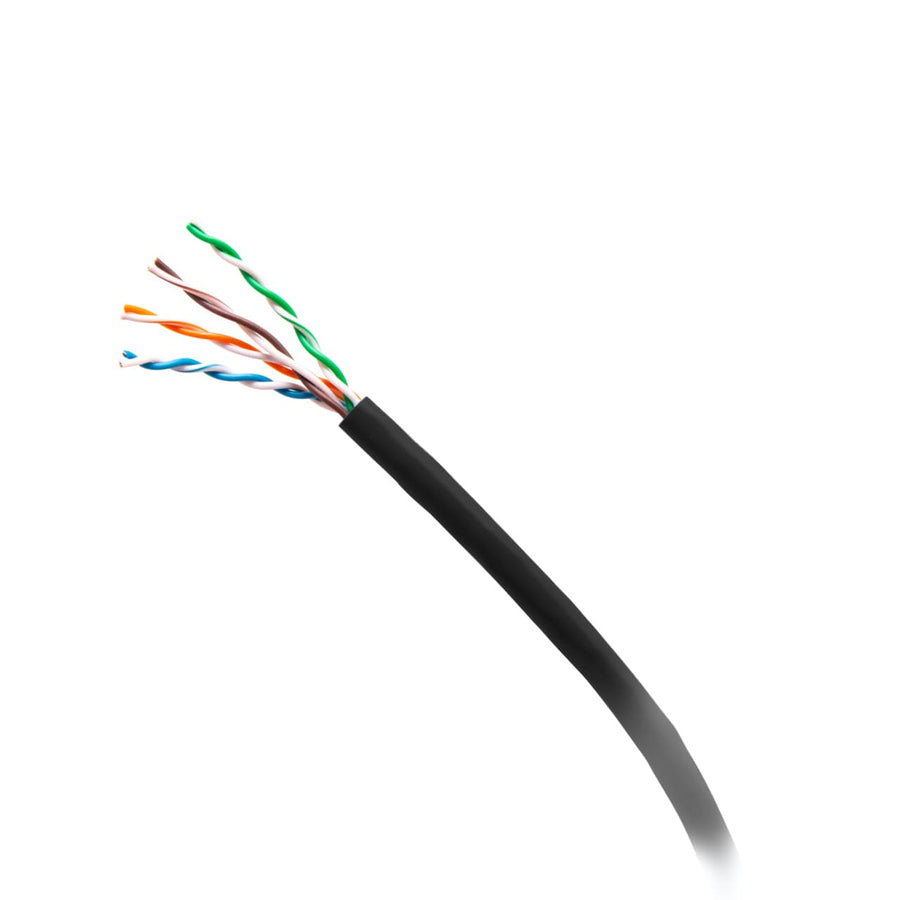

C2G56052 is a 1000 ft (304.8 m) spool of Cat6a unshielded twisted pair (UTP) bulk Ethernet network cable designed for professional infrastructure installations. This high-performance cable features 23 AWG solid copper conductors, ensuring reliable data transmission for high-bandwidth networking applications. The jacket is CMP-rated for plenum spaces, utilizing a Low Smoke Flame Retardant Polyvinyl Chloride (LSFRPVC) material to meet strict fire safety requirements in air-handling environments. This black cable is TAA-compliant and UL listed, making it suitable for government and highly regulated commercial projects. The cable maintains a 0.26 in (6.7 mm) diameter with a bend radius of 1.06 in (26.8 mm). Operating within a temperature range of -4°F to 140°F (-20°C to 60°C), this cable is built to meet ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards. For terminations, this product is provided as bare wire.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.06 in (26.8 mm) |
| Cable Diameter | 0.26 in (6.7 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 37.6 lbs (17.1 kg) |
| Shipping Weight | 37.9 lbs (17.2 kg) |
All other specifications 21
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | UTP |
| Cable Type | BulkCat6a |
| Category Performance Application | Cat6a |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560524 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | LSFRPVC (Low Smoke Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
Is C2G56052 suitable for plenum air-handling spaces?
Yes, this cable is CMP-rated with a Low Smoke Flame Retardant Polyvinyl Chloride (LSFRPVC) jacket, making it appropriate for plenum applications.
What type of conductors are used in this Cat6a cable?
The C2G56052 features 23 AWG solid copper conductors, providing the necessary performance for Category 6a networking standards.
What accessories are needed to terminate this bulk cable?
This is bare wire; you will need compatible terminations such as the Cat6a Quick Connect RJ45 Keystone Inserts (e.g., SKU WP346ABK) or Cat6a 24-Port Rack Mount Patch Panels (SKU WP246A).
Is this cable TAA compliant for government contracts?
Yes, the C2G56052 is TAA-compliant and meets UL, CE, REACH, and RoHS certification standards.
What is the bend radius for this network cable?
The minimum bend radius for this 0.26 in (6.7 mm) diameter cable is 1.06 in (26.8 mm).
